(For On/Off Applications)

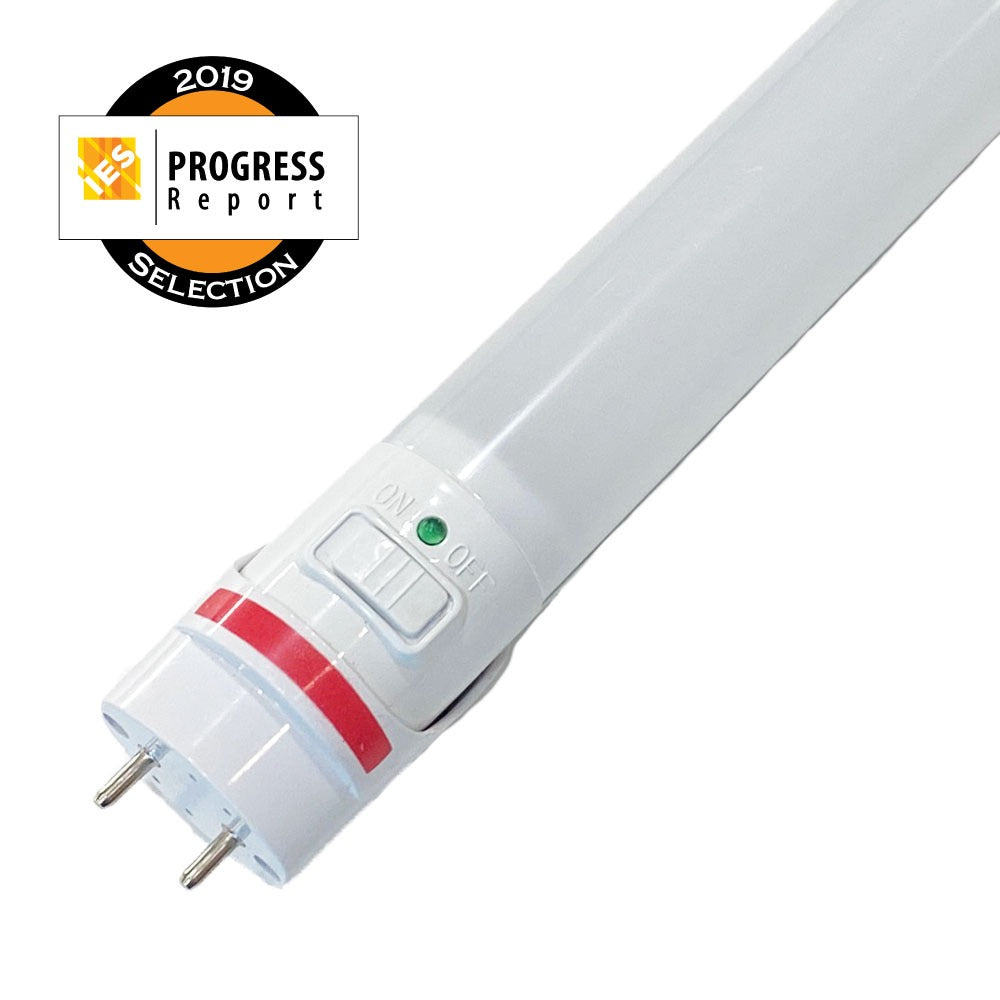

Aleddra’s Generation 2 (G2) Emergency LED T8 tube sets the new industry standard as the first emergency T8 tube that is operable with the wall switch. With two single-end wired sockets, one endcap of the G2 emergency T8 is connected to the emergency power line and another to the wall switch, thus making it easy to turn on and off the T8 through the wall switch. During a power outage, the emergency T8 automatically draws power from its built-in battery and lasts more than 90 minutes on battery at 420 lm. With its price point, the G2 emergency T8 is the most cost-effective emergency lighting option for replacing the expensive emergency ballast.

What's Included

• Emergency LED Tube
• Backup battery

Features

• 2-in-1 tube: regular T8 lighting and emergency lighting
• Built-in lithium battery
• Controllable by wall switch
• Easy battery shut-off switch for a long stocking time
• Can be used as a regular LED T8
• Easy to install and cost-effective
• Patented
• DLC 5.1 Listed
• ETL Certified
• 90 minutes battery time per industry standard
• IES Progress Report 2019 Selection

Specifications

Certifications

• DLC 5.1 Listed
• ETL Certified
• 90 minutes battery time per industry standard
• IES Progress Report 2019 Selection

Warranty

5-Year Warranty The 5-year warranty is provided under the assumption of performing no more than two 90-minute battery discharge tests annually over five years. The warranty is void if performing more than ten 90-minute battery discharge tests in five years.
