(For Always-On Applications)

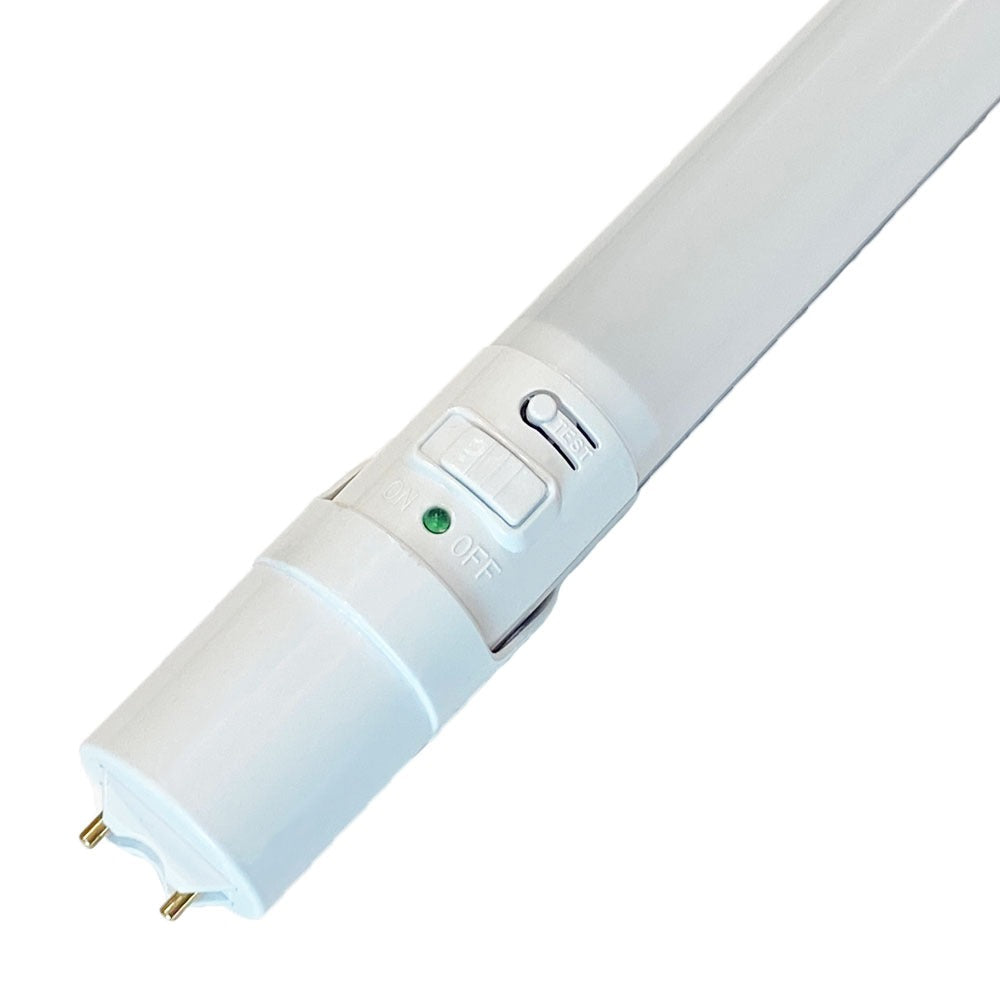

Aleddra’s G3 Plus Emergency LED T8 Tube is a 2-in-1 tube that can be used as a regular T8 lamp and automatically draws power from its built-in battery and lasts more than 90 minutes on battery at 420lm. It is double-end wired on line voltage (ballast bypass). It comes with dual safety switches on both end caps. More importantly, the lamp will automatically self-test for 30 seconds monthly and for 90 minutes annually, thus meeting the emergency lighting audit requirements with no labor cost. This saves a facility management team a tremendous amount of labor from manually testing every single lamp of this kind in its facilities. Should any malfunction be detected during self-testing, such as insufficient battery capacity, the warning indicator on the lamp will flash and alert the team. With its labor savings, the lamp gives the end user the best return on investment and the best emergency lighting option. It is required to operate on an always-on circuit in order to keep the battery charged at all times.

What's Included

• Emergency LED Tube
• Backup battery

Features

• 2-in-1 tube: T8 tube with backup battery
• Built-in lithium battery
• Fully automatic self-testing: 30-second test monthly and 90-minute test annually
• Fully automatic self-diagnosis with flashing indicator if the battery time drops below 90 minutes
• Anti-electric shock safety switches – patented
• Manual testing button
• Easy battery shut-off switch for a long stocking time
• Patented
• ETL certified for Type B (ballast bypass)
• 90 minutes battery time per industry standard

Specifications

Certifications

• ETL certified for Type B (ballast bypass)
• 90 minutes battery time per industry standard

Warranty

5-Year Warranty The 5-year warranty is provided under the assumption of performing no more than two 90-minute battery discharge tests annually over five years. The warranty is void if performing more than ten 90-minute battery discharge tests in five years.

Downloads & Files

• Spec Sheet
• Installation Instructions
