(For On/Off Applications)

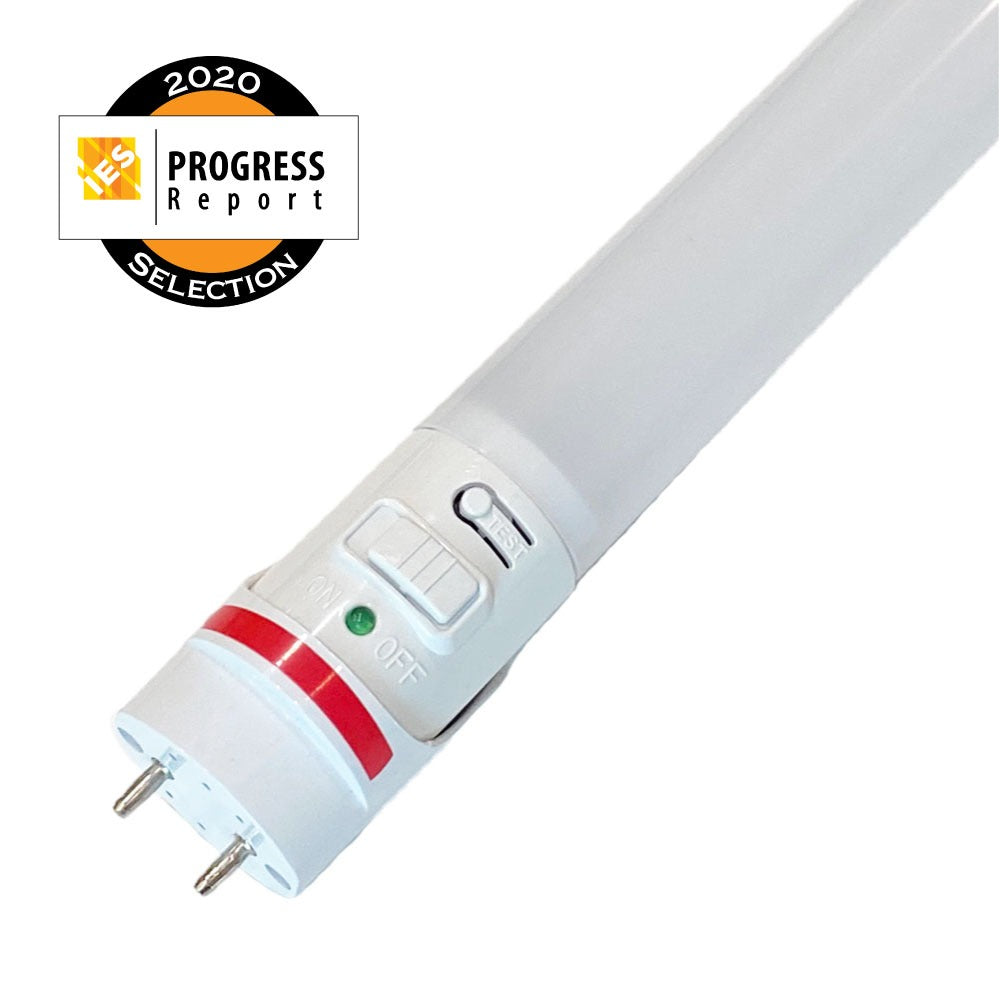

Aleddra’s Gen4 Emergency LED T8 tube sets another industry standard as the first fully automatic self-testing/self-diagnosis T8. The lamp operates as an energy-efficient T8 during normal operation and can be turned on/off via a wall switch. During power outage, it will last over 90 minutes on battery. More importantly, the lamp will automatically self-test for 30 seconds monthly and for 90 minutes annually, thus meeting the emergency lighting audit requirements with no labor cost. This saves a facility management team a tremendous amount of labor from manually testing every single lamp of this kind in its facilities. Should any malfunction be detected during self-testing, such as insufficient battery capacity, the warning indicator on the lamp will flash and alert the team. With its labor saving, the lamp gives the end user the best return on investment and the best emergency lighting option. Please follow the installation instruction to wire the lamp.

What's Included

• Emergency LED Tube
• Backup battery

Features

• 2-in-1 tube: regular T8 lighting and emergency lighting

• Fully automatic self-testing: 30-second test monthly and 90-minute test annually

• Fully automatic self-diagnosis with flashing indicator if the battery time drops below 90 minutes

• Manual testing button

• Built-in lithium batteries

• Controllable by wall switch

• Easy battery shutoff switch for a long stocking time

• ETL certified for Type B (ballast bypass)
• DLC 5.1 Listed
• IES Progress Report 2020 Selection
• 90 minutes battery time per industry standard

Specifications

Certifications

• ETL certified for Type B (ballast bypass)
• DLC 5.1 Listed
• IES Progress Report 2020 Selection
• 90 minutes battery time per industry standard

Warranty

5-Year Warranty The 5-year warranty is provided under the assumption of performing no more than two 90-minute battery discharge tests annually over five years. The warranty is void if performing more than ten 90-minute battery discharge tests in five years.

Downloads & Files

• Spec Sheet
• Installation Instructions
