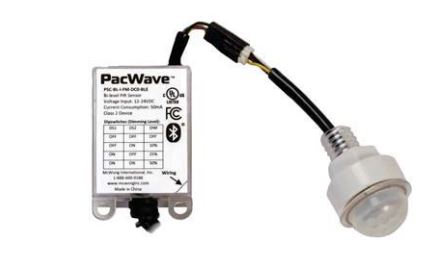

The ATG Wireless Control SystemPSC-BL-IRT-DC0 provided by McWong uses digital PIR Motion Detector Architecture and Dual Element passive infrared (PIR) technology for improved detection coverage for ceiling mount, high bay, and low bay applications.

Features

• Dual Element PIR sensor
• 0-10V configurable output: set to 0% (OFF)*, 10%, 25% or 50% dimming
• Photocell for ambient light detection
• Time delay 1 adjustable 5 sec to 30 min
• Time delay 2 adjustable 10 sec to ’
• LED Motion indicator
• Active High/Low outputs for Relay drive
• Mounting height of 10ft (3m).
• 360° coverage pattern
• Bluetooth add-on enables remote sensor programming with greater customization of dimming levels, time delays, and ambient light sensitivity

Specifications
