Features

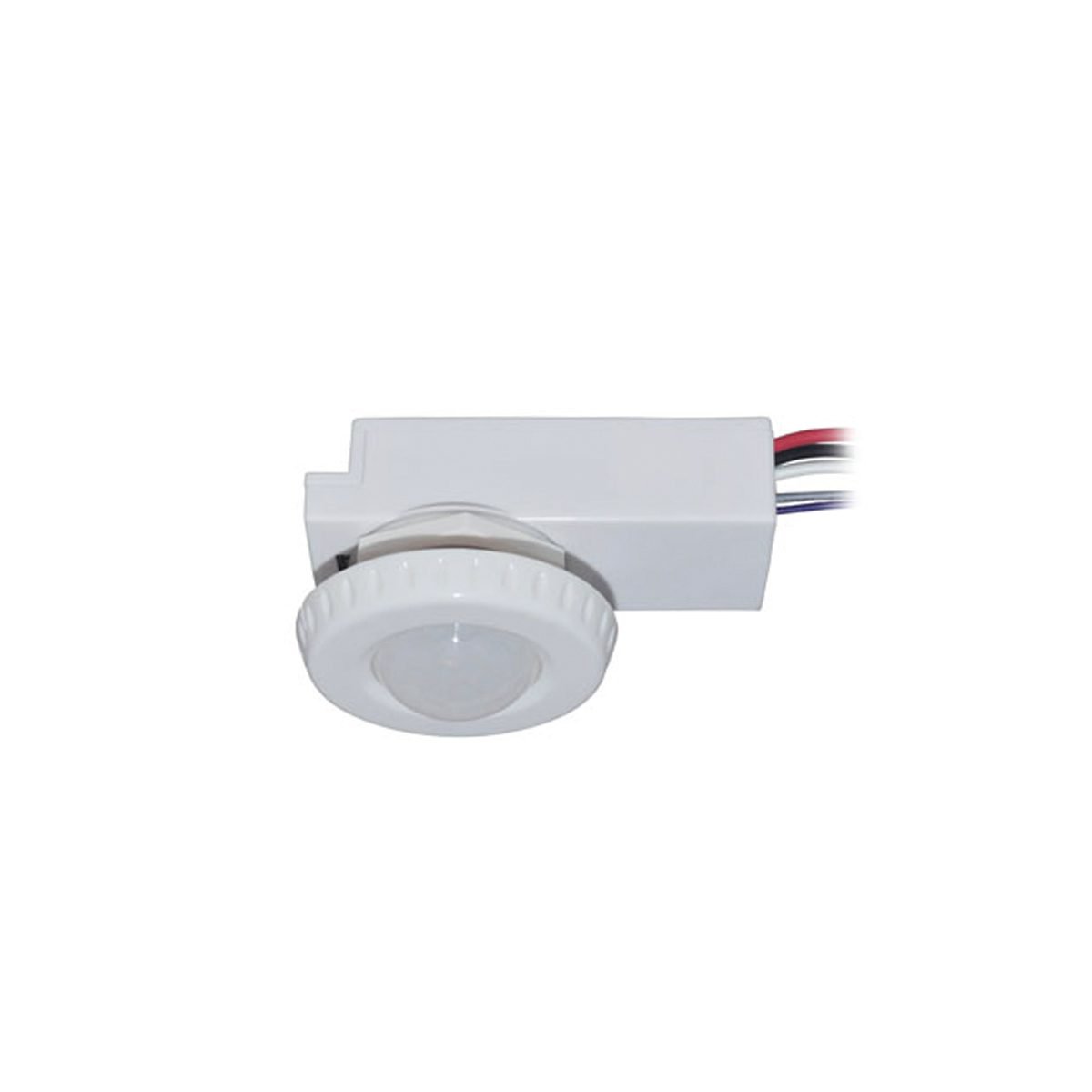

• The BRI823 sensor mounts has a slim, low-profile designed for installation inside the bottom of an LED luminaire’s body to provide multi-level control based on motion and/or daylight.
• Its polycarbonate housing is flame retardant, UV resistant, and impact resistant.
• It controls 0-1OV LED drivers, and is rated for wet and cold locations. All control parameters are adjustable using the RC-100 Remote Controller to store and transmit sensor profiles.
• Includes two (2) PIR Lens for low bay (Low Mode) up to 25-FT, or high bay mounting heights (High Mode) up to 40-FT.
• Provides line voltage On/Off switching and 0-1OV dimming control.
• Time delay setting options from 5 to 30 minutes, with optional disable delay.
• Adjustable ramp up and fade down times
• Optional daylighting setpoints feature automatic calibration or manual adjustment.
• Use optional RC100 Remote Controller Program to select and automate settings for brightness, sensitivity, hold time, standby-time, daylight sensor, and standby-dimming.
• Suitable for commercial and industrial locations: parking, warehouses, gymnasiums, manufacturing, production, factories, gas stations, and pedestrian pathways.
