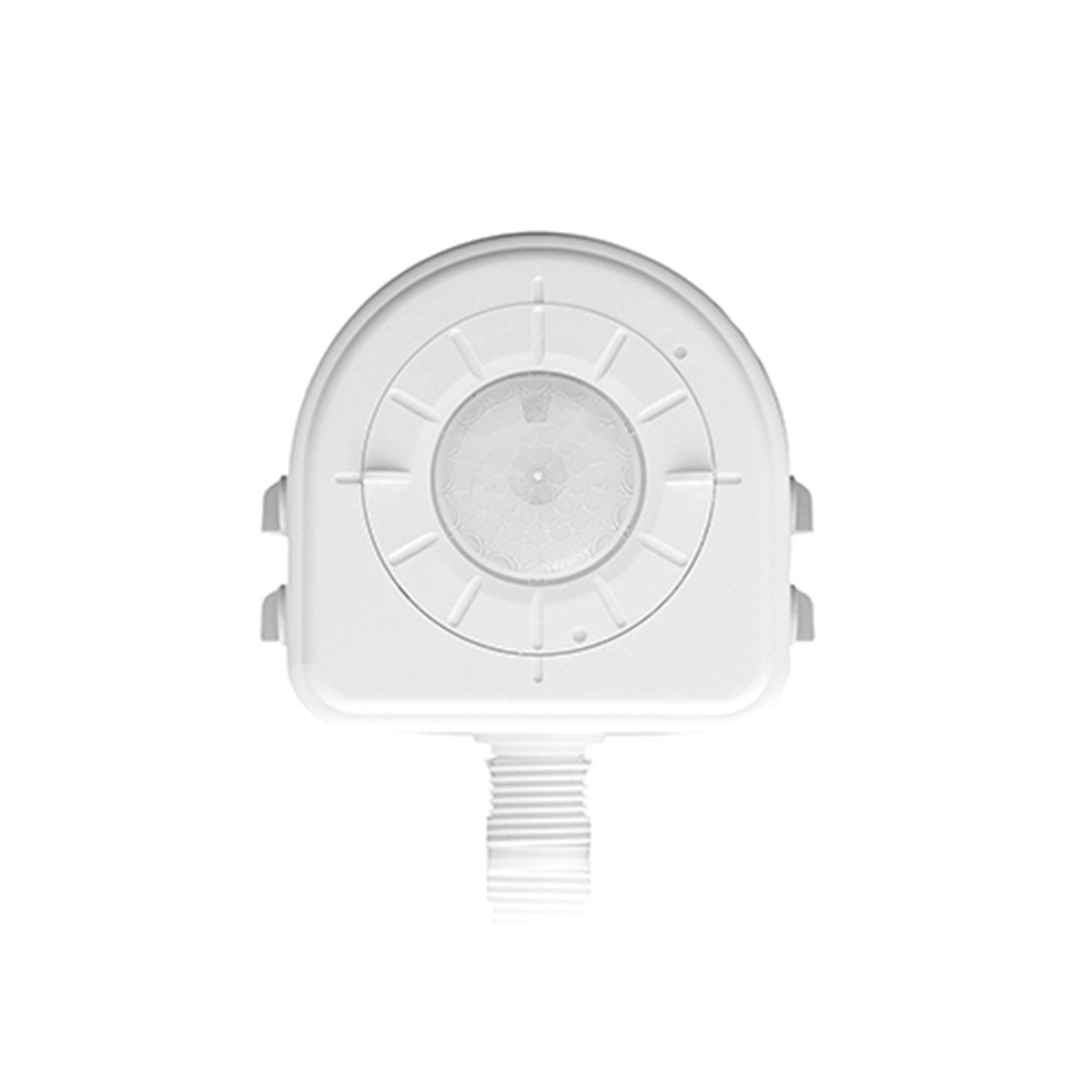

LEVITON™ PIR Fixture Mount, Dimming Sensor with Daylight Harvesting (120-347V).

Features

  • High Bay Fixture Mount Occupancy Sensor lighting control with Daylight Harvesting– PIR technology.
  • Single relay with one (1-10V sinking current) control line for use to connect directly to low voltage control ballast.
  • Fixture Mount Passive Infrared High /Low Bay Occupancy Sensor, Time Delay: 30 seconds to 30 minutes.
  • Includes Two (2) interchangeable, adjustable 360° lenses: High Bay Lens provides 1.5:1 spacing to mounting height coverage for 21 to 40 feet, and Low Bay Lens provides 2:1 spacing to mounting height coverage for 13 to 20 feet, 120-230-277 or 347V.
  • 1-100% continuous dimming control specifically designed for LED fixture control.
  • Suitable for use in standard and cold storage applications.
  • Visual RGB LED indicators for device status and troubleshooting.
  • Alternating relay software for increased lamp life.
  • Meets energy code requirements for ASHRAE 90.1 and Title 24 for electronic ballast loads 120/277V.

Specifications

Input Voltage 120-347V
Input Frequency 50/60 Hz
Operating Temperature 14°F ~ 160°F (-10°C ~ 71°C)
Color White
Warranty 7yr/75K
Detection Range Max.ø 30-FT @40-FT Height
Hold Time 30s~20 min
Sensor Frequency Passive Infrared
Switching Capacity 800VA@120V~1500VA@347V (Fluorescent Ballasts), Max
