Features

• High-Bay Fixture Mount Occupancy Sensor lighting control, Interchangeable Adjustable 360° Low Bay and (8′-20′), High Bay (20′-40′) Lenses, Aisle Mask, Passive Infrared Technology, 120/208/220/230/240/277/347V; 50/60Hz.
• Quick-snap threaded nipple, Instant Start-up, Return-to-last state after power outage, Auto-Sensitivity gain from temperature increase, False-detection protection, Super Bright Green LED.

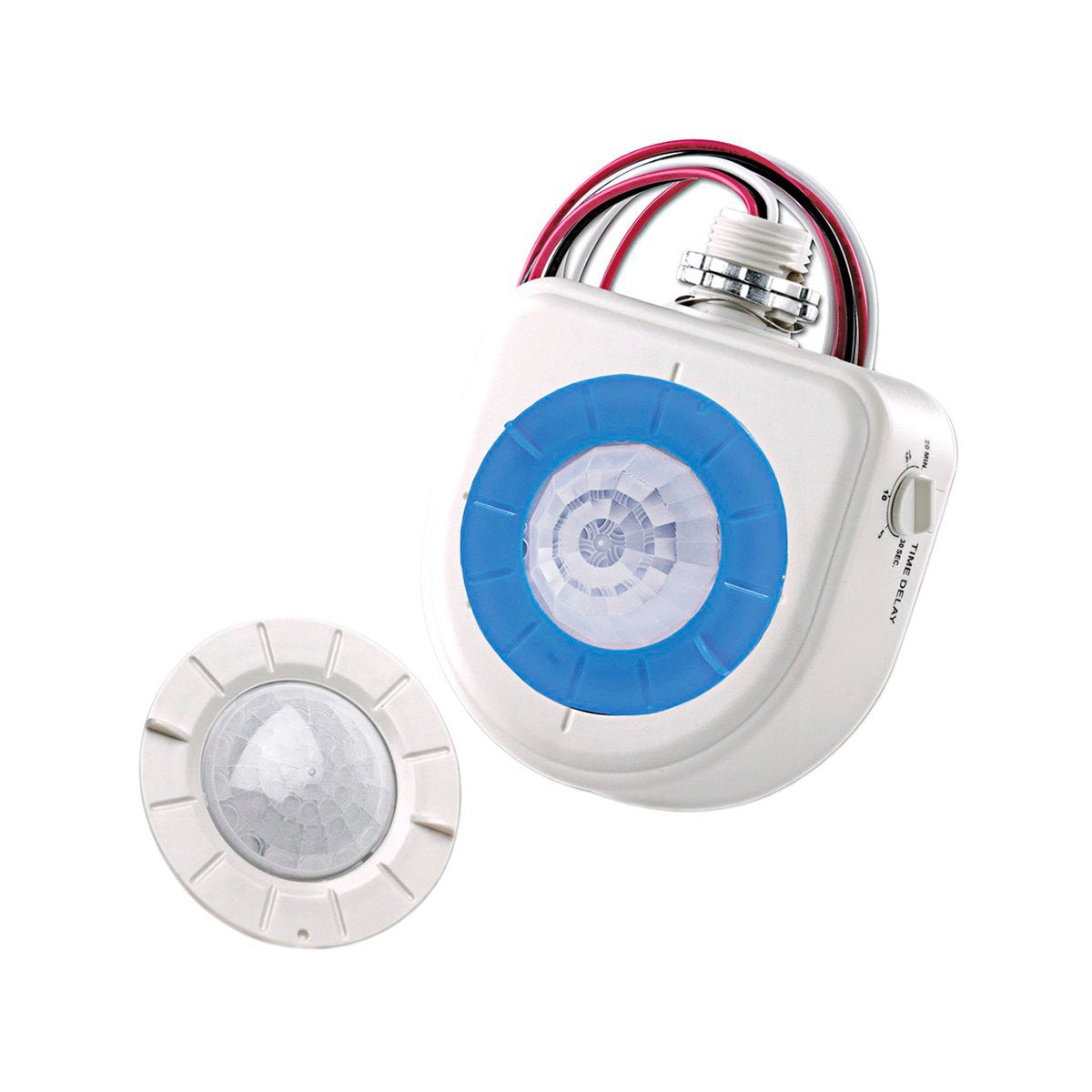

• The OSFHU high-bay occupancy sensor is specifically designed for high mounted areas such as warehouses, manufacturing and other high ceiling applications.
• It is a self-contained sensor and relay that turns individual light fixtures on or off based on occupancy in the detection zone.
• It comes with three interchangeable lenses for use in either a 360-degrees high-bay or 360-degrees low-bay general area or an aisle way.
• The OSFHU provides reliable coverage up to 40 ft. Mounting heights.
• The OSFHU is also available in a model for cold storage applications with temperatures as low as -40°F. To improve the field-of-view for deep body fixtures, a separate offset adapter accessory (OSFOA-00W) can be used to position the sensor below the fixture body.
• The adapter simply snaps into a 1/2-inch knockout on the end of the industrial fixture to attach the sensor.
