Matthews Fan Company Atlas America 52" Reversible White and Light Oak Wood Tone Blades Ceiling Fan In Gloss White Finish With Light Kit
Matthews Fan Company Atlas America 52" Reversible White and Light Oak Wood Tone Blades Ceiling Fan In Gloss White Finish With Light Kit
Downrod
-- Please Select --
Brushed Bronze
5"
10"
20"
30"
48"
72"
Matte Black
5"
10"
20"
30"
48"
72"
Brushed Nickel
5"
10"
20"
30"
48"
72"
Brushed Stainless
5"
10"
20"
30"
48"
72"
Polished Chrome
5"
10"
20"
30"
48"
72"
Textured Bronze
5"
10"
20"
30"
48"
72"
No, Thank You
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-827-0612
• Email support@lampsdepot.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
America
The America fan is a practical solution for both residential or commercial spaces with a more traditional aesthetic. It is available with either 42 or 52 inch diameters, along with an optional light kit. The blades are reversible as either white or light oak tone finish. The America carries a limited lifetime warranty.
What's Included
- Light Kit
- 3" Downrod
- 9" Cuttable Downrod
- Vaulted Ceiling Canopy Up To 30 Degrees
Features
 |
American Labor Matthews Fan Company proudly promotes and incorporates American labor into their products. |
 |
AC Motor This fan uses a standard reversible AC motor. |
 |
LED Lamp This product features an integrated light kit. |
 |
Dry Location This product is UL Listed in safety certification, recommended to be installed in dry location. |
 |
Silent This ceiling fan does not create noise will not keep you up at night. |
 |
Unipack Shipping Matthews Fan Company units come with a single-box packaging to ensure compactness and safety in handling. |
Applicability to Buy American Act
Click here to see Applicability to Buy American ActTaiwan Applicability to Buy American Act - Breakdown of Origin of Materials:
|
Specifications
| Brand | Matthews Fan Company |
| Standard Finish | Gloss White |
| Blade Style | Reversible |
| Number of Blades | 5 |
| Fan Diameter | 52" |
| Light Kit | No |
| Blade Material | MDF |
| Fan Weight | 21 lbs |
| Overall Drops with both standard downrods: 3” and 9” |
19” with light kit and 3” downrod |
| Lead Length | 78" |
| Voltage | 110 or 220 |
| Motor Type | AC |
| Motor size | 172 mm x 14 mm (3 speeds and forward/reverse) |
| Downrod Length (Cuttable) | 5", 10", 20", 30", 48", 72" |
| Downrod Diameter | 1" |
| Mounting | Vaulted ceiling canopy for up to 29° |
| Control | Pull-chain (Wall control available as accessory) |
| Ambience | Silent |
| Safety Certification | UL Listed - Dry Location |
| Shipping Weight | 18 lbs |
| Shipping Dimensions | 22" L x 11" W x 10" H |
| Motor Speed | 3-Speed |
| Light kit | Available as accessory with X2 GU24 sockets and frosted glass bowl. LED lamps. |
DOE Motor Efficiency Data
| With 3” Downrod |
With 3” Downrod |
With 9” Downrod |
With 9” Downrod |
|
| 42 inch | 52 inch | 42 inch | 52 inch | |
| RPM (Low / High) | 87 / 243 | 54 / 162 | 93 / 249 | 57 / 166 |
| CFM (Low / High) | 1488 / 4204 | 1313 / 4083 | 1419 / 4050 | 1699 / 4643 |
| Watts (High) | 60.00 | 64.67 | 61.00 | 59.00 |
| CFM/Watt (High) | 58.00 | 63.14 | 58.00 | 79.00 |
| Blade Pitch | 12° | 12° | 12° | 12° |
Light Kit Photometrics
| Lamping (Replaceable) | LED |
| Delivered Temperature in K | 3000 |
| Delivered Lumens | 805 (x2) |
| Watts | 18 (x2) |
| Hours | 25,000 |
| Light kit longevity if used 6 Hours/Day: | 11.4 Years |
Ceiling Pitch Table
Click here to see ceiling pitch table
|
Ceiling Height / Downrod Table
Click here to see ceiling height / downrod table
|

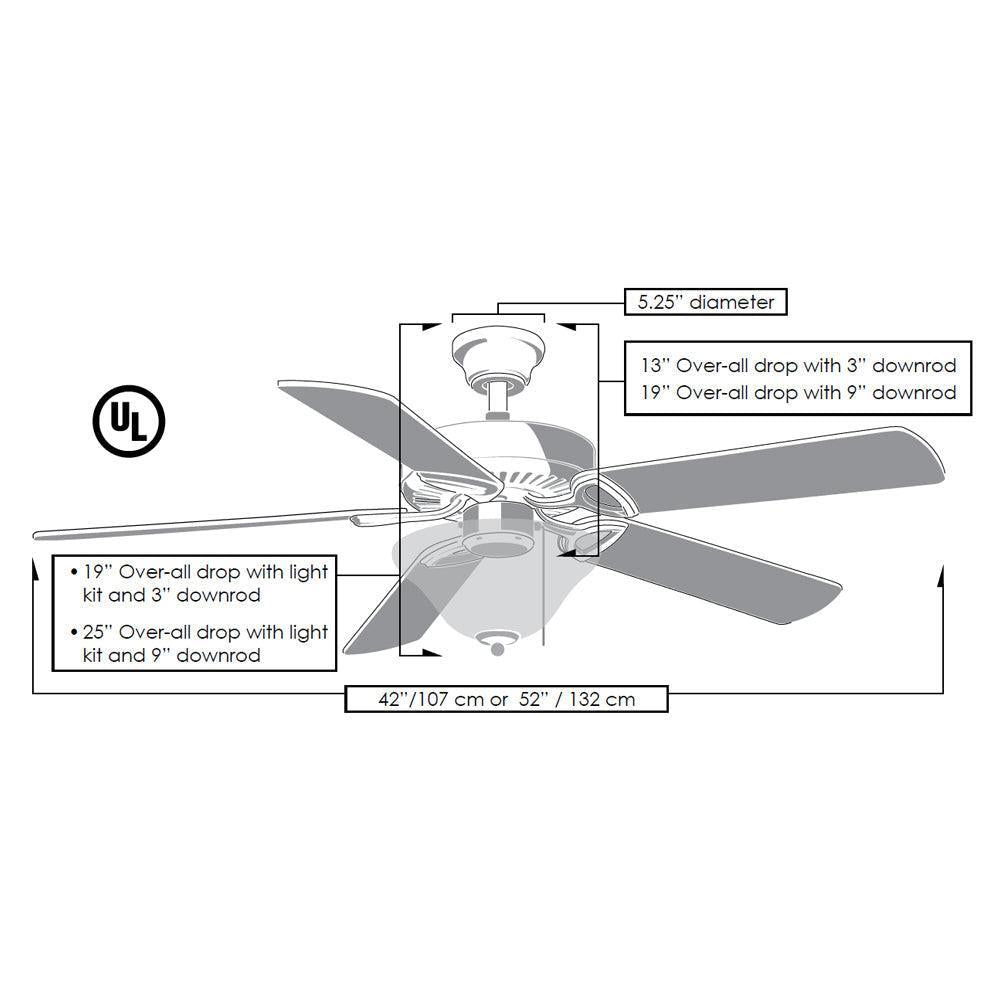

Dimension
Warranty
Limited Lifetime Warranty: Matthews Fan Company warranties its products to the original user against defects in workmanship or materials under normal use and inside installation for:
- Motors: Lifetime of original purchaser
- Component Parts (lights, finish, blades etc.): One year from date of purchase
- Light Bulbs: No warranty
Any part, which is determined by Matthews Fan Company to be defective in material or workmanship and returned to an authorized service location designated by Matthews Fan Company, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at Matthews Fan Company’s option providing that proof of purchase is provided.
Your warranty rights will be honored only when the product has been installed and used properly. Warranty does not cover repair or replacement of products damaged by improper use or faulty installation.
Matthews Fan Company assumes no liability for labor or installation costs or other losses. Further warranty information is found in installation instructions.
Care of and Troubleshooting Your Fan1. Check hardware bi-yearly. Because of the fan's natural movement some connections may become loose over time. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. It is not necessary to remove fan from the wall. 2. Clean your fan periodically. This will help to help maintain its new appearance over the years. Use only a lightly water-moistened, lint free cloth to avoid scratching the finish. Plated finishes are sealed with lacquer to minimize discoloration or tarnishing. Do not let rain or running water to come in contact with the fan. Rain or running water could damage the motor, wood blades or possibly cause an electrical shock. 3. There is no need to oil your fan. The motor has permanently lubricated bearings. 4. Fan makes a vibration noise. Check to see that all screws are tight in the fan cage connection to the motor face plate. 5. Fan vibrates or makes grinding noise as blades rotate. Uninstall and reinstall the blades. Make sure that your fan head's set screw is counter-sunk into the bore hole in the flat part of the motor shaft. Be careful that the blade brackets themselves are not bent in this process. Do not operate your fan if it continues to vibrate. Contact your Atlas Fan Co purveyor if the re-installation of the blades does not resolve the problem. |
Limitation of LiabilityTo the extent allowable under law, Matthews-Gerbar, Ltd.'s liability for consequential and incidental damages is expressly disclaimed. Matthews-Gerbar, Ltd.'s liability in all events is limited to, and shall not exceed, the purchase price paid. |
Warranty DisclaimerMatthews-Gerbar, Ltd. has made a diligent effort to illustrate and describe the products in this literature accurately: however, such illustrations and descriptions are for the sole purpose of identification, and do not express or imply that the products will necessarily conform to the illustrations or descriptions. Furthermore, there is no express warranty derived from any viewed sample or model. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use. Except as provided below, no warranty or affirmation of fact, expressed or implied, other than as stated in "Limited Lifetime Warranty" above is made or authorized by Matthews-Gerbar, Ltd. |
Product SuitabilityMany states and localities have codes and regulations governing sales, construction, installation and/or use of products for certain purposes, which may vary from those in neighboring areas. While Matthews-Gerbar, Ltd. attempts to assure that its products comply with such codes, it cannot guarantee compliance and cannot be responsible for how the product is installed or used. Before purchase and use of a product, please review the product application and national and local codes and regulations, and be sure that the product, installation, and use will comply with them. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use if any modifications are made to the original manufacturer's product. Certain aspects of disclaimers are not applicable to consumer products: e.g.(a) some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you: (b) also, some states do not allow limitations on how long an implied warranty lasts, consequently the above limitation may not apply to you. |
Other ExclusionsThis warranty does not cover defects caused by: exposure to extremes of heat and humidity, neglect, modification, alteration, repair or service of the enclosed product by anyone other than an authorized Matthews-Gerbar, Ltd. service center; physical abuse to, or misuse of, the product or operation of it in a manner contrary to the accompanying instructions; or shipment of the product to a Matthews-Gerbar, Ltd. dealer or service center for service. This warranty also excludes all costs arising from adjustment of user controls, products purchased outside of the U.S.A., and costs for initial technical adjustments (set-up). Matthews-Gerbar assumes no liability for labor costs, installation costs or other losses. Consult the operating instructions included with the product for information regarding user controls. |
Prompt DispositionMatthews-Gerbar, Ltd. will make a good faith effort for prompt correction respect to any product, which proves to be defective within limited lifetime warranty. For any product believed to be defective within limited lifetime warranty, first call or write dealer from whom the product was purchased. Dealer will give additional directions. If unable to resolve satisfactorily, call Matthews-Gerbar, Ltd. at the phone number below, giving the dealer's name, address, date and number of dealer's invoice, and describe the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was damaged in transit to you, file claim with the carrier. |
Downloads
- Atlas America Specifications Sheet
- Atlas America 52" Fan With 3" Downrod and Light Kit Energy Guide
- Atlas America 52" Fan With 9" Downrod and Light Kit Energy Guide
- Atlas America Installation Manual
- Matthews Fan Company Catalog
About Matthews Fan Company
Matthews Fan Company has been at the forefront of bringing unique ceiling, wall and portable fan products to both the residential and commercial markets since 1992. The innovative fans combine traditional, contemporary and industrial designs, retrospective elements and always high performance.
Matthews Fan Company proudly integrates American parts and labor into the production of all of our products.
Their fans achieve some of the highest efficiency ratings in the industry through:
- DC Motor technology allows for large, powerful blades, which provide more robust airflow and ultra-quiet operation.
- Rotational fans reduce HVAC costs by mixing ambient air more thoroughly.
- Directional and Wall fans provide columnar airflow, which can be customized.
Matthews Fan Company does not field destroy.
- 95% of damaged and defective materials are recycled or repurposed.
Matthews achieves low defect rates because:
- All fans are visually inspected before shipping.
- All rotating and oscillating fans are bench-tested before shipping.
