Matthews Fan Company Atlas Dagny LK 16" Matte Black Rotational Fan With 10" Downrod and Barnwood Tone Wood Blades With Light Kit
Matthews Fan Company Atlas Dagny LK 16" Matte Black Rotational Fan With 10" Downrod and Barnwood Tone Wood Blades With Light Kit
Ceiling Mount
-- Please Select --
No, Thank You
Downrod
-- Please Select --
Brushed Bronze
5"
10"
20"
30"
48"
72"
Matte Black
5"
10"
20"
30"
48"
72"
Brushed Nickel
5"
10"
20"
30"
48"
72"
Brushed Stainless
5"
10"
20"
30"
48"
72"
Polished Chrome
5"
10"
20"
30"
48"
72"
Textured Bronze
5"
10"
20"
30"
48"
72"
Gloss White
5"
10"
20"
30"
48"
72"
No, Thank You
Fan Head
-- Please Select --
No, Thank You
Wall Switch
-- Please Select --
No, Thank You
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-827-0612
• Email support@lampsdepot.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Dagny LK
With clean, fluid lines, the Dagny LK 360° rotational fan is a striking centerpiece in any space. Its movement about its cylindrical center housing is smooth and quiet. Dagny LK’s dual fan heads can be infinitely positioned in 180-degree arcs for optimum and customized air movement.
As the angle between the fan heads and the horizontal support rods is increased, so does the speed of Dagny LK’s axial rotation. Matthews rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans.
Constructed from cast aluminum and heavy stamped steel, the Dagny LK carries a limited lifetime warranty. This model is also available without a light kit as the Dagny.
What's Included
- 10" Cuttable Downrod
- Vaulted ceiling canopy for up to 29°
- Black 3-speed RF remote control with reverse
Features
 |
American Labor Matthews Fan Company proudly promotes and incorporates American labor into their products. |
 |
AC Motor This fan uses a standard reversible AC motor. |
 |
360 Degrees Rotation This ceiling fan rotates in 360-degree angle. |
 |
Safety Cage Compatible This product is compatible with both decorative and safety cage for versatility in installation preference. |
 |
Damp Location Protective Coating This fan has an IP20 rating which provides protection from moisture in damp locations. However, it's not recommended for salt water or ocean front applications. |
 |
Soothing White Noise This product creates a soothing white noise which promotes calmness and focus. |
 |
LED Lamp This fan includes LED light kit. |
 |
Remote Control This unit is controllable by hand-held and wall-mountable remote for flexibility in adjustment to the preferred fan speed. The fan is compatible with any accessory, Lutron Decora-Style Wall Control: SFSQ-LF. |
 |
Unipack Shipping Matthews Fan Company units come with a single-box packaging to ensure compactness and safety in handling. |
Specifications
| Fan Weight |
22 lbs |
| Voltage | 110 (Contact us for 220 conversion) |
| Motor Type | AC |
| Rotation |
Yes |
| Downrods Lengths Field cuttable Non-threaded |
5", 10", 20", 30", 48", 72" |
| Downrod Diameter | 1" |
| Overall Drop | 14" + downrod length |
| Environment | Damp location with protective powder or clear coat only. Neither coastal, saltwater nor chlorine compatible. |
| Ambience | Soothing White Noise |
| Safety Certification | UL / CUL |
| Warranty | Limited Lifetime |
DOE Motor Efficiency Data
| Fan Head Options |
Solid Mahogany Wood |
Metal with Guard |
| Fan Diameter | 41" | 39" |
| Fan Blade Diameter | 16" | 13" |
| Guard Options | No Cage Option | Safety Cage or Decorative Cage |
| RPM (Low / High) | 757 / 1256 | 1069 / 1442 |
| CFM (Low / High) | 2557 / 4171 | 1844 / 3067 |
| Watts (High) | 87.36 | 80.50 |
| CFM/Watt (High) | 50.00 | 39.00 |
| Blade Pitch | 19° | 31° |
Light Kit Photometrics
| Lamping (Replaceable) | Integrated LED |
| Remote Dimmable | Yes |
| Delivered Temperature in K | 2969 |
| Delivered Lumens | 523.7 |
| CRI | 90 |
| Watts | 18 |
| Hours | 50,000 |
| Light kit longevity if used 6 Hours/Day: | 22.8 Years |
Ceiling Pitch Table
Click here to see ceiling pitch table
|
Ceiling Height / Downrod Table
Click here to see ceiling height / downrod table
|

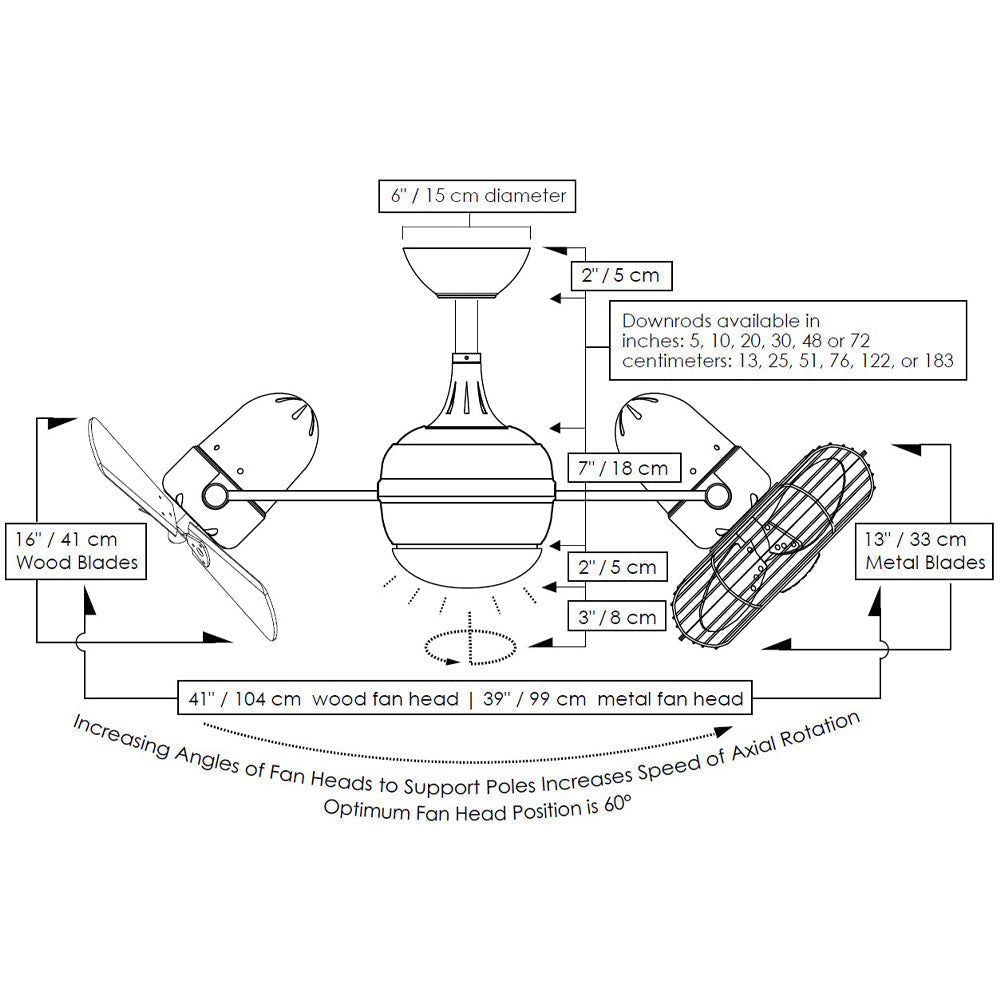

Dimension
Warranty
Limited Lifetime Warranty: Matthews Fan Company warranties its products to the original user against defects in workmanship or materials under normal use and inside installation for:
- Motors: Lifetime of original purchaser
- Component Parts (lights, finish, blades etc.): One year from date of purchase
- Light Bulbs: No warranty
Any part, which is determined by Matthews Fan Company to be defective in material or workmanship and returned to an authorized service location designated by Matthews Fan Company, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at Matthews Fan Company’s option providing that proof of purchase is provided.
Your warranty rights will be honored only when the product has been installed and used properly. Warranty does not cover repair or replacement of products damaged by improper use or faulty installation.
Matthews Fan Company assumes no liability for labor or installation costs or other losses. Further warranty information is found in installation instructions.
Care of and Troubleshooting Your Fan1. Check hardware bi-yearly. Because of the fan's natural movement some connections may become loose over time. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. It is not necessary to remove fan from the wall. 2. Clean your fan periodically. This will help to help maintain its new appearance over the years. Use only a lightly water-moistened, lint free cloth to avoid scratching the finish. Plated finishes are sealed with lacquer to minimize discoloration or tarnishing. Do not let rain or running water to come in contact with the fan. Rain or running water could damage the motor, wood blades or possibly cause an electrical shock. 3. There is no need to oil your fan. The motor has permanently lubricated bearings. 4. Fan makes a vibration noise. Check to see that all screws are tight in the fan cage connection to the motor face plate. 5. Fan vibrates or makes grinding noise as blades rotate. Uninstall and reinstall the blades. Make sure that your fan head's set screw is counter-sunk into the bore hole in the flat part of the motor shaft. Be careful that the blade brackets themselves are not bent in this process. Do not operate your fan if it continues to vibrate. Contact your Atlas Fan Co purveyor if the re-installation of the blades does not resolve the problem. |
Limitation of LiabilityTo the extent allowable under law, Matthews-Gerbar, Ltd.'s liability for consequential and incidental damages is expressly disclaimed. Matthews-Gerbar, Ltd.'s liability in all events is limited to, and shall not exceed, the purchase price paid. |
Warranty DisclaimerMatthews-Gerbar, Ltd. has made a diligent effort to illustrate and describe the products in this literature accurately: however, such illustrations and descriptions are for the sole purpose of identification, and do not express or imply that the products will necessarily conform to the illustrations or descriptions. Furthermore, there is no express warranty derived from any viewed sample or model. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use. Except as provided below, no warranty or affirmation of fact, expressed or implied, other than as stated in "Limited Lifetime Warranty" above is made or authorized by Matthews-Gerbar, Ltd. |
Product SuitabilityMany states and localities have codes and regulations governing sales, construction, installation and/or use of products for certain purposes, which may vary from those in neighboring areas. While Matthews-Gerbar, Ltd. attempts to assure that its products comply with such codes, it cannot guarantee compliance and cannot be responsible for how the product is installed or used. Before purchase and use of a product, please review the product application and national and local codes and regulations, and be sure that the product, installation, and use will comply with them. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use if any modifications are made to the original manufacturer's product. Certain aspects of disclaimers are not applicable to consumer products: e.g.(a) some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you: (b) also, some states do not allow limitations on how long an implied warranty lasts, consequently the above limitation may not apply to you. |
Other ExclusionsThis warranty does not cover defects caused by: exposure to extremes of heat and humidity, neglect, modification, alteration, repair or service of the enclosed product by anyone other than an authorized Matthews-Gerbar, Ltd. service center; physical abuse to, or misuse of, the product or operation of it in a manner contrary to the accompanying instructions; or shipment of the product to a Matthews-Gerbar, Ltd. dealer or service center for service. This warranty also excludes all costs arising from adjustment of user controls, products purchased outside of the U.S.A., and costs for initial technical adjustments (set-up). Matthews-Gerbar assumes no liability for labor costs, installation costs or other losses. Consult the operating instructions included with the product for information regarding user controls. |
Prompt DispositionMatthews-Gerbar, Ltd. will make a good faith effort for prompt correction respect to any product, which proves to be defective within limited lifetime warranty. For any product believed to be defective within limited lifetime warranty, first call or write dealer from whom the product was purchased. Dealer will give additional directions. If unable to resolve satisfactorily, call Matthews-Gerbar, Ltd. at the phone number below, giving the dealer's name, address, date and number of dealer's invoice, and describe the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was damaged in transit to you, file claim with the carrier. |
Documents & Files
