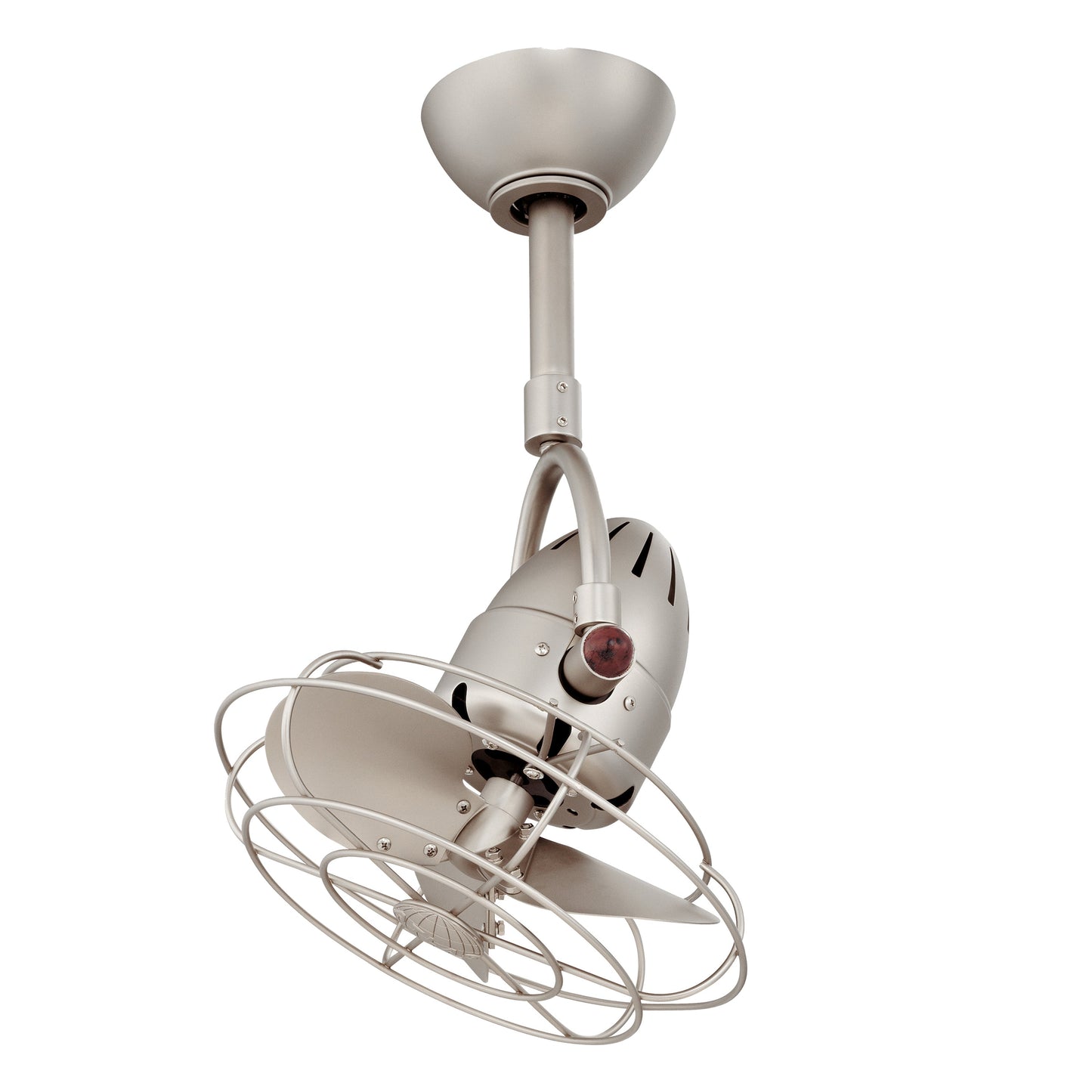

Matthews Fan Company Atlas Diane 13” Single Oscillating Directional Ceiling Fan With 10” Downrod and Metal Blades in Brushed Nickel Finish
Matthews Fan Company Atlas Diane 13” Single Oscillating Directional Ceiling Fan With 10” Downrod and Metal Blades in Brushed Nickel Finish
Ceiling Mount
-- Please Select --
No, Thank You
Downrod
-- Please Select --
Brushed Bronze
5"
10"
20"
30"
48"
72"
Matte Black
5"
10"
20"
30"
48"
72"
Brushed Stainless
5"
10"
20"
30"
48"
72"
Polished Chrome
5"
10"
20"
30"
48"
72"
Textured Bronze
5"
10"
20"
30"
48"
72"
Gloss White
5"
10"
20"
30"
48"
72"
No, Thank You
Fan Head
-- Please Select --
No, Thank You
Wall Switch
-- Please Select --
No, Thank You
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-827-0612
• Email support@lampsdepot.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Diane
The Diane directional fan head provides maximum airflow with a sweeping 90° forward and reverse oscillation. It can be hung in small, awkward spaces or in front of HVAC ducts to improve the efficiency of heating, ventilation or air conditioning of any space. Constructed of cast aluminum and heavy stamped steel, the Diane carries a limited lifetime warranty.
What's Included
- 10" Cuttable Downrod
- Metal Blades and Decorative Cage
- Hand-held 3-speed Black RF Remote Control With Reverse
- Vaulted Ceiling Canopy Up To 29 Degrees
Features
 |
American Labor Matthews Fan Company proudly promotes and incorporates American labor into their products. |
 |
AC Motor The Atlas Diane uses a standard reversible AC motor. |
 |
90-degree Oscillation This product features a single oscillating directional ceiling fan. |
 |

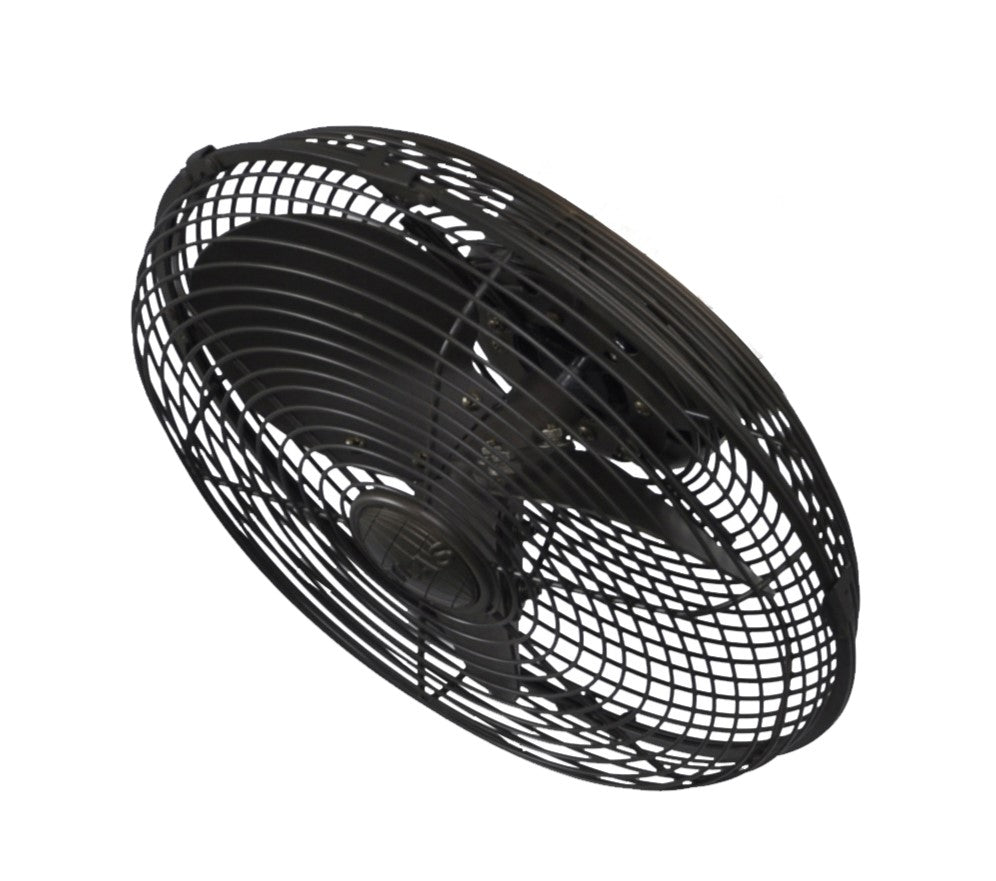

Safety Cage Compatible This product is compatible with both decorative and safety cage for versatility in installation preference. |
 |
Damp Location Protective Coating This Atlas Diane has an IP20 rating which provides protection from moisture in damp locations. However, it's not recommended for salt water or ocean front applications. |
 |
Soothing White Noise This product creates a soothing white noise which promotes calmness and focus. |
 |
Remote Control This unit is controllable by hand-held and wall-mountable remote for flexibility in adjustment to the preferred fan speed. The fan is compatible with any accessory, Lutron Decora-Style Wall Control: SFSQ-LF. |
 |
Unipack Shipping Matthews Fan Company units come with a single-box packaging to ensure compactness and safety in handling. |
Specifications
| Brand | Matthews Fan Company |
| Standard Finish | Brushed Nickel |
| Blade Style and Material | Metal w/ Decorative Cage |
| Number of Blades | 3 |
| Fan Weight | 12 lbs |
| Voltage | 110 or 220 |
| Motor Type | AC |
| Oscillation | Yes |
| Downrod Length (Cuttable) | 5", 10", 20", 30", 48", 72" |
| Downrod Diameter | 1" |
| Overall Drop (Metal Blade) | 14" + Downrod Length |
| Location Rating | Damp Location |
| Ambience | Soothing White Noise |
| Safety Certification | ETL / CETL |
| Pack Number | 1 |
| Shipping Weight | 15 lbs |
| Shipping Dimensions | 21" L x 15" W x 14" H |
| IP Rating | IP20 |
| Amps | 0.5 |
| Motor Speed | 3-Speed |
DOE Motor Efficiency Data
| Fan Head Option | Solid Wood | Metal with Guard |
| Fan Diameter | 16” | 13" |
| Fan Blade Diameter | 16” | 13" |
| Guard Options | No Cage Option | Decorative Cage or Safety Cage |
| RPM (Low / High) | 865 / 1325 | 900 / 1377 |
| CFM (Low / High) | 1441 / 2152 | 1068 / 1345 |
| Watts (High) | 51.37 | 46.14 |
| CFM/Watt (High) | 44 | 31 |
| Blade Pitch | 19 degrees | 31 degrees |
Ceiling Pitch Table
Click here to see ceiling pitch table
|
Ceiling Height / Downrod Table
Click here to see ceiling height / downrod table
|

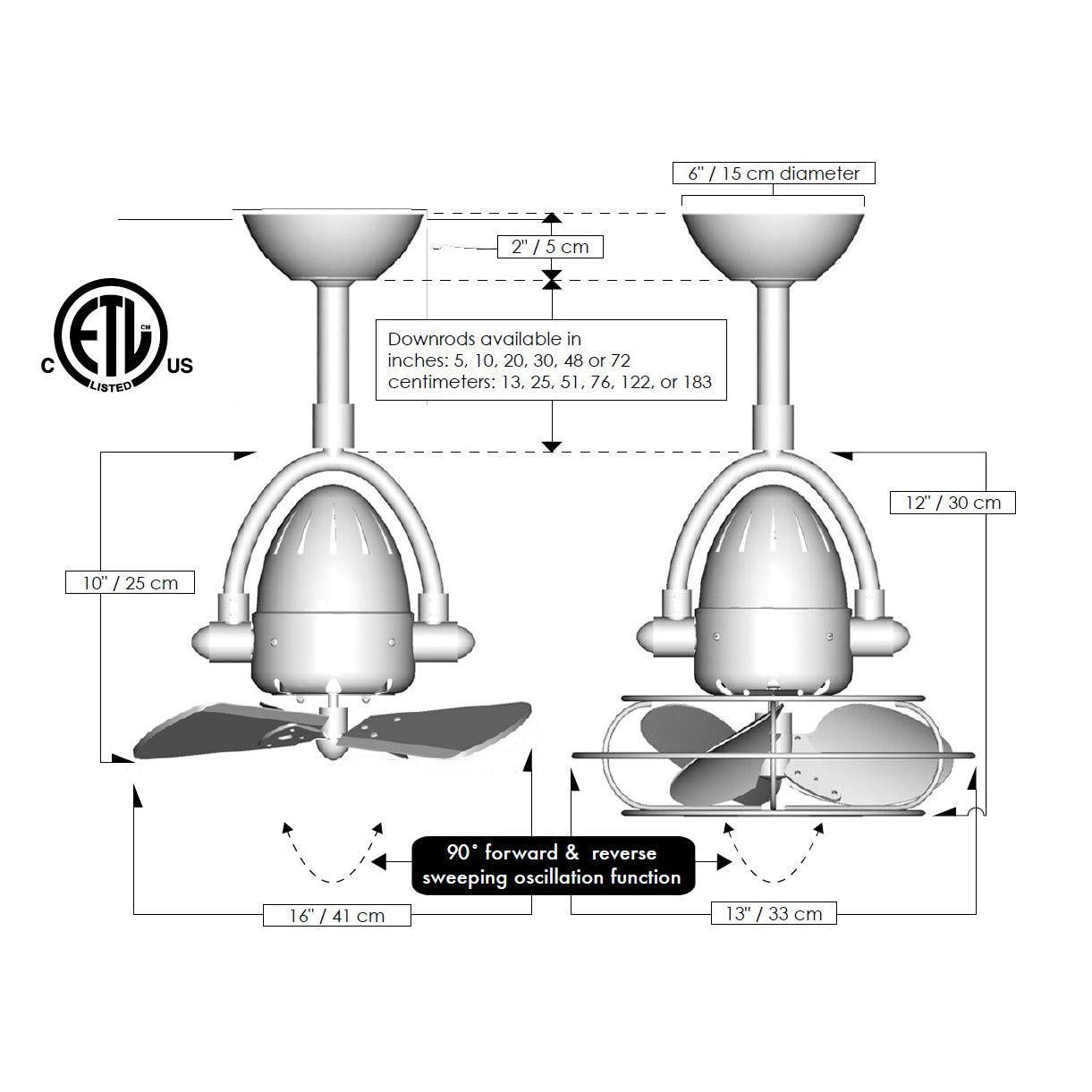

Dimension
Warranty
Limited Lifetime Warranty: Matthews Fan Company warranties its products to the original user against defects in workmanship or materials under normal use and inside installation for:
- Motors: Lifetime of original purchaser
- Component Parts (lights, finish, blades etc.): One year from date of purchase
- Light Bulbs: No warranty
Any part, which is determined by Matthews Fan Company to be defective in material or workmanship and returned to an authorized service location designated by Matthews Fan Company, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at Matthews Fan Company’s option providing that proof of purchase is provided.
Your warranty rights will be honored only when the product has been installed and used properly. Warranty does not cover repair or replacement of products damaged by improper use or faulty installation.
Matthews Fan Company assumes no liability for labor or installation costs or other losses. Further warranty information is found in installation instructions.
Care of and Troubleshooting Your Fan1. Check hardware bi-yearly. Because of the fan's natural movement some connections may become loose over time. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. It is not necessary to remove fan from the wall. 2. Clean your fan periodically. This will help to help maintain its new appearance over the years. Use only a lightly water-moistened, lint free cloth to avoid scratching the finish. Plated finishes are sealed with lacquer to minimize discoloration or tarnishing. Do not let rain or running water to come in contact with the fan. Rain or running water could damage the motor, wood blades or possibly cause an electrical shock. 3. There is no need to oil your fan. The motor has permanently lubricated bearings. 4. Fan makes a vibration noise. Check to see that all screws are tight in the fan cage connection to the motor face plate. 5. Fan vibrates or makes grinding noise as blades rotate. Uninstall and reinstall the blades. Make sure that your fan head's set screw is counter-sunk into the bore hole in the flat part of the motor shaft. Be careful that the blade brackets themselves are not bent in this process. Do not operate your fan if it continues to vibrate. Contact your Atlas Fan Co purveyor if the re-installation of the blades does not resolve the problem. |
Limitation of LiabilityTo the extent allowable under law, Matthews-Gerbar, Ltd.'s liability for consequential and incidental damages is expressly disclaimed. Matthews-Gerbar, Ltd.'s liability in all events is limited to, and shall not exceed, the purchase price paid. |
Warranty DisclaimerMatthews-Gerbar, Ltd. has made a diligent effort to illustrate and describe the products in this literature accurately: however, such illustrations and descriptions are for the sole purpose of identification, and do not express or imply that the products will necessarily conform to the illustrations or descriptions. Furthermore, there is no express warranty derived from any viewed sample or model. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use. Except as provided below, no warranty or affirmation of fact, expressed or implied, other than as stated in "Limited Lifetime Warranty" above is made or authorized by Matthews-Gerbar, Ltd. |
Product SuitabilityMany states and localities have codes and regulations governing sales, construction, installation and/or use of products for certain purposes, which may vary from those in neighboring areas. While Matthews-Gerbar, Ltd. attempts to assure that its products comply with such codes, it cannot guarantee compliance and cannot be responsible for how the product is installed or used. Before purchase and use of a product, please review the product application and national and local codes and regulations, and be sure that the product, installation, and use will comply with them. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use if any modifications are made to the original manufacturer's product. Certain aspects of disclaimers are not applicable to consumer products: e.g.(a) some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you: (b) also, some states do not allow limitations on how long an implied warranty lasts, consequently the above limitation may not apply to you. |
Other ExclusionsThis warranty does not cover defects caused by: exposure to extremes of heat and humidity, neglect, modification, alteration, repair or service of the enclosed product by anyone other than an authorized Matthews-Gerbar, Ltd. service center; physical abuse to, or misuse of, the product or operation of it in a manner contrary to the accompanying instructions; or shipment of the product to a Matthews-Gerbar, Ltd. dealer or service center for service. This warranty also excludes all costs arising from adjustment of user controls, products purchased outside of the U.S.A., and costs for initial technical adjustments (set-up). Matthews-Gerbar assumes no liability for labor costs, installation costs or other losses. Consult the operating instructions included with the product for information regarding user controls. |
Prompt DispositionMatthews-Gerbar, Ltd. will make a good faith effort for prompt correction respect to any product, which proves to be defective within limited lifetime warranty. For any product believed to be defective within limited lifetime warranty, first call or write dealer from whom the product was purchased. Dealer will give additional directions. If unable to resolve satisfactorily, call Matthews-Gerbar, Ltd. at the phone number below, giving the dealer's name, address, date and number of dealer's invoice, and describe the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was damaged in transit to you, file claim with the carrier. |
Downloads
- Atlas Diane Specifications Sheet
- Atlas Diane With Metal Blades Energy Guide
- Atlas Diane Installation Manual
- Matthews Fan Company Catalog
About Matthews Fan Company
Matthews Fan Company has been at the forefront of bringing unique ceiling, wall and portable fan products to both the residential and commercial markets since 1992. The innovative fans combine traditional, contemporary and industrial designs, retrospective elements and always high performance.
Matthews Fan Company proudly integrates American parts and labor into the production of all of our products.
Their fans achieve some of the highest efficiency ratings in the industry through:
- DC Motor technology allows for large, powerful blades, which provide more robust airflow and ultra-quiet operation.
- Rotational fans reduce HVAC costs by mixing ambient air more thoroughly.
- Directional and Wall fans provide columnar airflow, which can be customized.
Matthews Fan Company does not field destroy.
- 95% of damaged and defective materials are recycled or repurposed.
Matthews achieves low defect rates because:
- All fans are visually inspected before shipping.
- All rotating and oscillating fans are bench-tested before shipping.
Options & Accessories
Ceiling Mount
A 29-degree slant ceiling canopy for Atlas Ceiling Fans.
Click here to see ceiling mount options
|
Downrod
The Atlas ceiling fan downrod comes into various stem lengths and is cuttable, non-threaded, and can fit according to installation preference.
Click here to see downrod options
|
Fan Head
The Atlas Fan Head Set does not include the motor part.
Click here to see fan head options
|
Wall Switch
Decora-style 3-speed fan wall-mounted control in white. It works with Acqua and Dagny Fans.
Click here to see wall switch option
|
Click here to see wall switch option
|
