AR Ruthiane
The Ar Ruthiane’s unique hourglass support arms grasp bullet-shaped motor housings which rotate 360° about its teardrop center. The fan heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed. Matthews 360° rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans. Constructed of cast aluminum, heavy spun and stamped steel, the Ar Ruthiane carries a limited lifetime warranty.
What's Included
- 10" Downrod
- Flat Ceiling Canopy
- Decora-style, 3-speed Wall Control in White
Features
- Matthews rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans.
- Constructed of cast aluminum, heavy spun and stamped steel, this fan carries a limited lifetime warranty.
- Each unique motor mount and fan head knob is made of genuine marbleized Bakelite.
- Compatible with 29-degree vaulted ceiling canopy accessory
- All Matthews-Gerbar fans are hand made and not mass produced.
- Safety cages are available for low ceiling applications.
- Damp location with powder or clear coat only; not recommended for salt water/ocean front applications.
 |
American Labor Matthews Fan Company proudly promotes and incorporates American labor into their products. |
 |
Hand Made All Matthews Gerbar fans are hand made and not mass produced. |
 |
AC Motor The Matthews-Gerbar Ar Ruthiane uses a standard AC motor. |
 |
360 Degrees This ceiling fan features a 360° |
 |
Safety Cage Compatible This product is compatible with both decorative and safety cage for versatility in installation preference. |
|
Damp Location Protective Coating Damp location with powder or clear coat only, not recommended for salt water/ocean front applications. |
|
Soothing White Noise This product creates a soothing white noise which promotes calmness and focus. |
|
Wall Control This unit includes a compatible Decora-style, 3-speed wall control. |
 |
Unipack Shipping Matthews Fan Company units come with a single-box packaging to ensure compactness and safety in handling. |
Specifications
| Brand | Matthews Fan Company |
| Standard Finish | White |
| Style | Contemporary/Transitional |
| Number of Blades | 6 |
| Fan Diameter | 13"/16" |
| Light Kit | No |
| Blade Material | Aluminum |
| Fan Weight | 21 lbs |
| Overall Drops with both standard downrods: 3” and 9” | 12"+ downrod length |
| Voltage | 110 or 220 |
| Motor Type | AC |
| Downrod Length (Cuttable) | 5", 10", 20", 30", 48", 72" |
| Downrod Diameter | 0.75" |
| Mounting | Vaulted ceiling canopy for up to 29° |
| Control | Wall Control |
| Ambience | Soothing White Noise |
| Safety Certification | UL/CUL |
| Shipping Weight | 33 lbs |
| Shipping Dimensions | 44" L x 15" W x 15" H |
| Motor Speed | 3-Speed |
DOE Motor Efficiency Data
| Fan Head Options |
Solid Mahogany Wood |
Metal with Guard |
| Fan Diameter | 48" | 46" |
| Fan Blade Diameter | 16" | 13" |
| Guard Options | No Cage Option | Decorative Cage or Safety Cage with tight tines |
| RPM (Low / High) | 723 / 1308 | 591 / 1075 |
| CFM (Low / High) | 2644 / 4724 | 1215 / 2371 |
| Watts (High) | 96.94 | 103.53 |
| CFM/Watt (High) | 48.73 | 22.90 |
| Blade Pitch | 19° | 31° |
Ceiling Pitch Table
Click here to see ceiling pitch table
|
Ceiling Height / Downrod Table
Click here to see ceiling height / downrod table
|

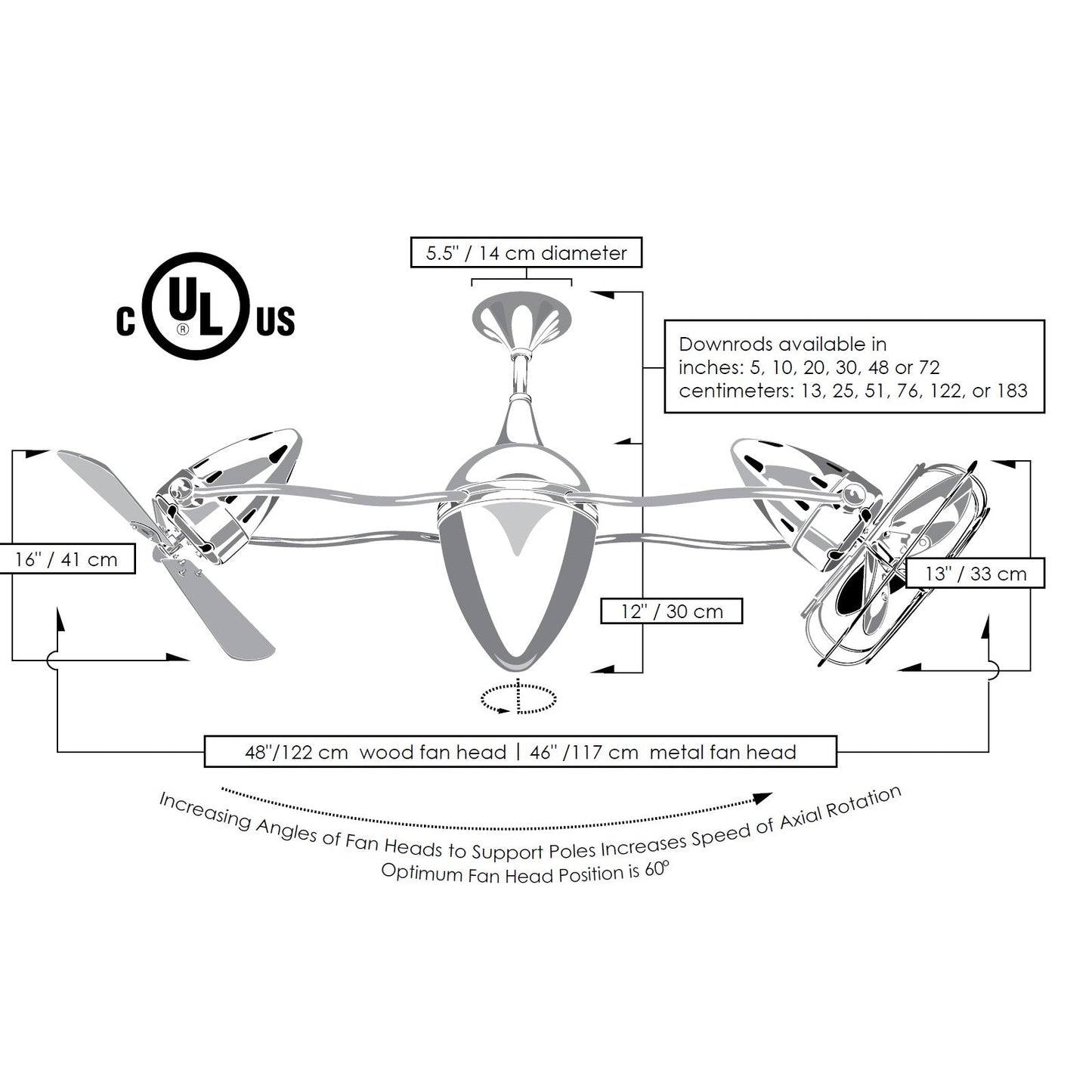

Dimension
Warranty
Limited Lifetime Warranty: Matthews Fan Company warranties its products to the original user against defects in workmanship or materials under normal use and inside installation for:
- Motors: Lifetime of original purchaser
- Component Parts (lights, finish, blades etc.): One year from date of purchase
- Light Bulbs: No warranty
Any part, which is determined by Matthews Fan Company to be defective in material or workmanship and returned to an authorized service location designated by Matthews Fan Company, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at Matthews Fan Company’s option providing that proof of purchase is provided.
Your warranty rights will be honored only when the product has been installed and used properly. Warranty does not cover repair or replacement of products damaged by improper use or faulty installation.
Matthews Fan Company assumes no liability for labor or installation costs or other losses. Further warranty information is found in installation instructions.
Care of and Troubleshooting Your Fan1. Check hardware bi-yearly. Because of the fan's natural movement some connections may become loose over time. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. It is not necessary to remove fan from the wall. 2. Clean your fan periodically. This will help to help maintain its new appearance over the years. Use only a lightly water-moistened, lint free cloth to avoid scratching the finish. Plated finishes are sealed with lacquer to minimize discoloration or tarnishing. Do not let rain or running water to come in contact with the fan. Rain or running water could damage the motor, wood blades or possibly cause an electrical shock. 3. There is no need to oil your fan. The motor has permanently lubricated bearings. 4. Fan makes a vibration noise. Check to see that all screws are tight in the fan cage connection to the motor face plate. 5. Fan vibrates or makes grinding noise as blades rotate. Uninstall and reinstall the blades. Make sure that your fan head's set screw is counter-sunk into the bore hole in the flat part of the motor shaft. Be careful that the blade brackets themselves are not bent in this process. Do not operate your fan if it continues to vibrate. Contact your Atlas Fan Co purveyor if the re-installation of the blades does not resolve the problem. |
Limitation of LiabilityTo the extent allowable under law, Matthews-Gerbar, Ltd.'s liability for consequential and incidental damages is expressly disclaimed. Matthews-Gerbar, Ltd.'s liability in all events is limited to, and shall not exceed, the purchase price paid. |
Warranty DisclaimerMatthews-Gerbar, Ltd. has made a diligent effort to illustrate and describe the products in this literature accurately: however, such illustrations and descriptions are for the sole purpose of identification, and do not express or imply that the products will necessarily conform to the illustrations or descriptions. Furthermore, there is no express warranty derived from any viewed sample or model. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use. Except as provided below, no warranty or affirmation of fact, expressed or implied, other than as stated in "Limited Lifetime Warranty" above is made or authorized by Matthews-Gerbar, Ltd. |
Product SuitabilityMany states and localities have codes and regulations governing sales, construction, installation and/or use of products for certain purposes, which may vary from those in neighboring areas. While Matthews-Gerbar, Ltd. attempts to assure that its products comply with such codes, it cannot guarantee compliance and cannot be responsible for how the product is installed or used. Before purchase and use of a product, please review the product application and national and local codes and regulations, and be sure that the product, installation, and use will comply with them. Matthews-Gerbar, Ltd. disclaims any expressed warranty and implied warranty of merchantability and fitness for a particular use if any modifications are made to the original manufacturer's product. Certain aspects of disclaimers are not applicable to consumer products: e.g.(a) some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you: (b) also, some states do not allow limitations on how long an implied warranty lasts, consequently the above limitation may not apply to you. |
Other ExclusionsThis warranty does not cover defects caused by: exposure to extremes of heat and humidity, neglect, modification, alteration, repair or service of the enclosed product by anyone other than an authorized Matthews-Gerbar, Ltd. service center; physical abuse to, or misuse of, the product or operation of it in a manner contrary to the accompanying instructions; or shipment of the product to a Matthews-Gerbar, Ltd. dealer or service center for service. This warranty also excludes all costs arising from adjustment of user controls, products purchased outside of the U.S.A., and costs for initial technical adjustments (set-up). Matthews-Gerbar assumes no liability for labor costs, installation costs or other losses. Consult the operating instructions included with the product for information regarding user controls. |
Prompt DispositionMatthews-Gerbar, Ltd. will make a good faith effort for prompt correction respect to any product, which proves to be defective within limited lifetime warranty. For any product believed to be defective within limited lifetime warranty, first call or write dealer from whom the product was purchased. Dealer will give additional directions. If unable to resolve satisfactorily, call Matthews-Gerbar, Ltd. at the phone number below, giving the dealer's name, address, date and number of dealer's invoice, and describe the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was damaged in transit to you, file claim with the carrier. |
