The Orbit offers a contemporary look that will light up your space while staying seamless with your decor.

The Orbit is a stylish and functional light fixture that will help you set the stage for a look that is lavish and effortless.

What's Included

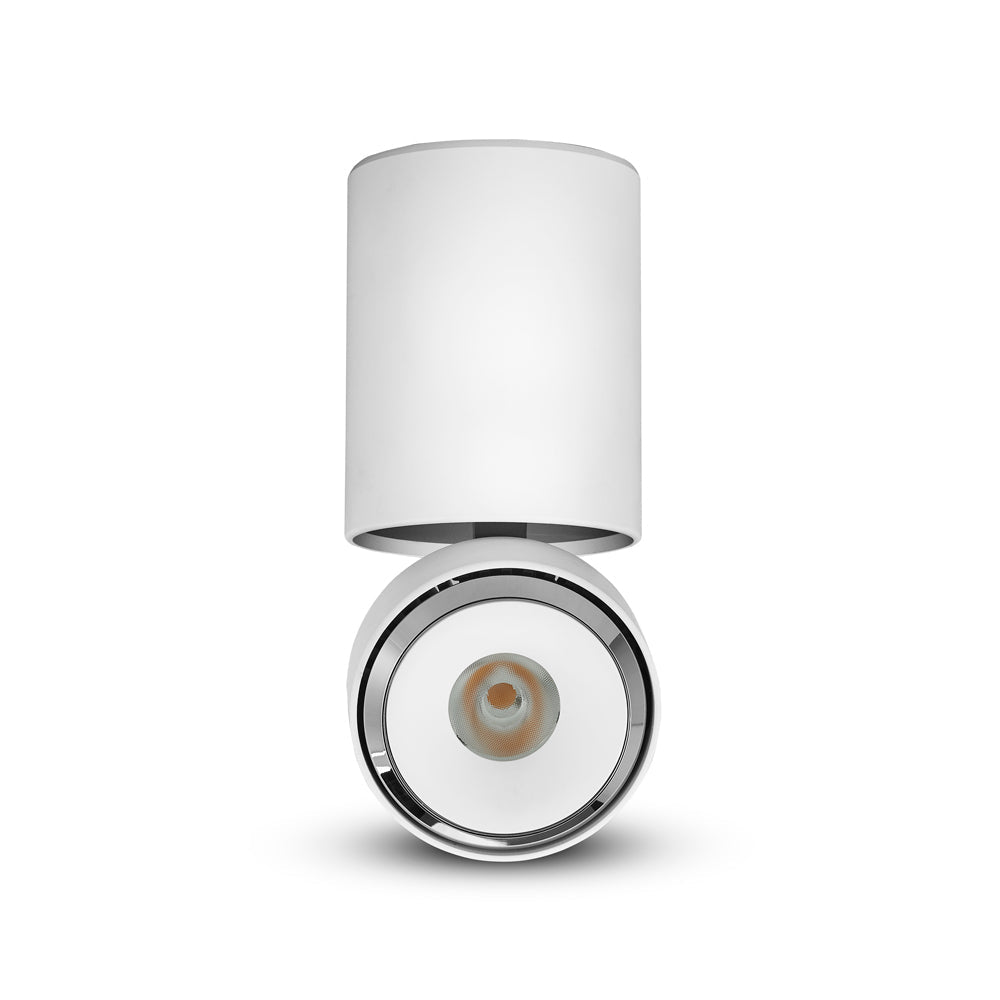

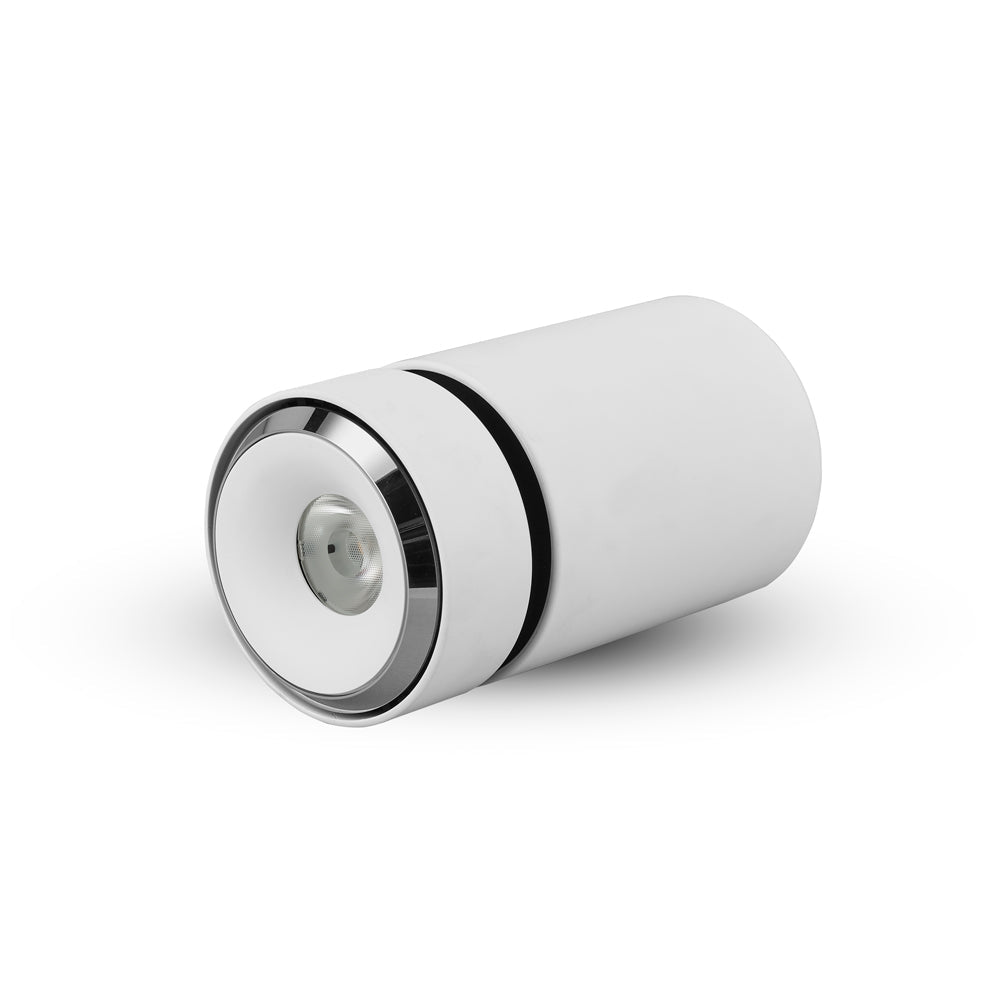

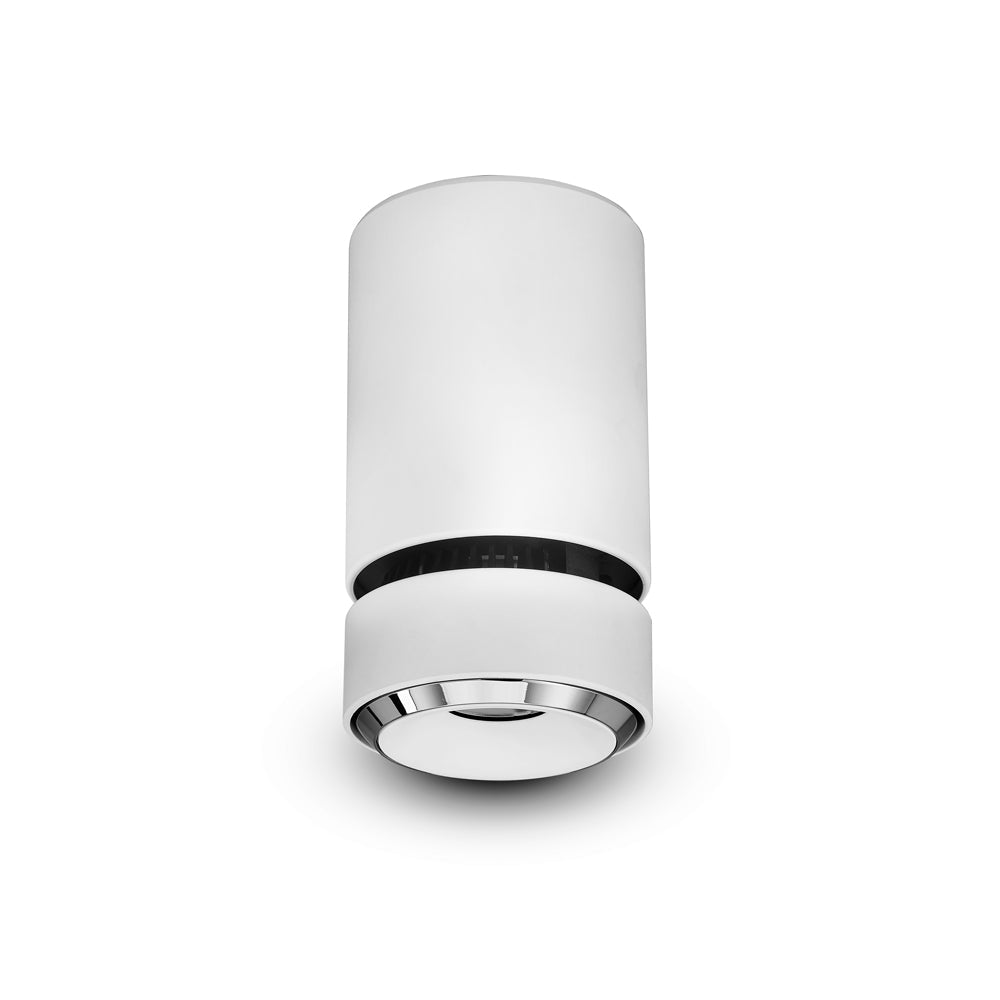

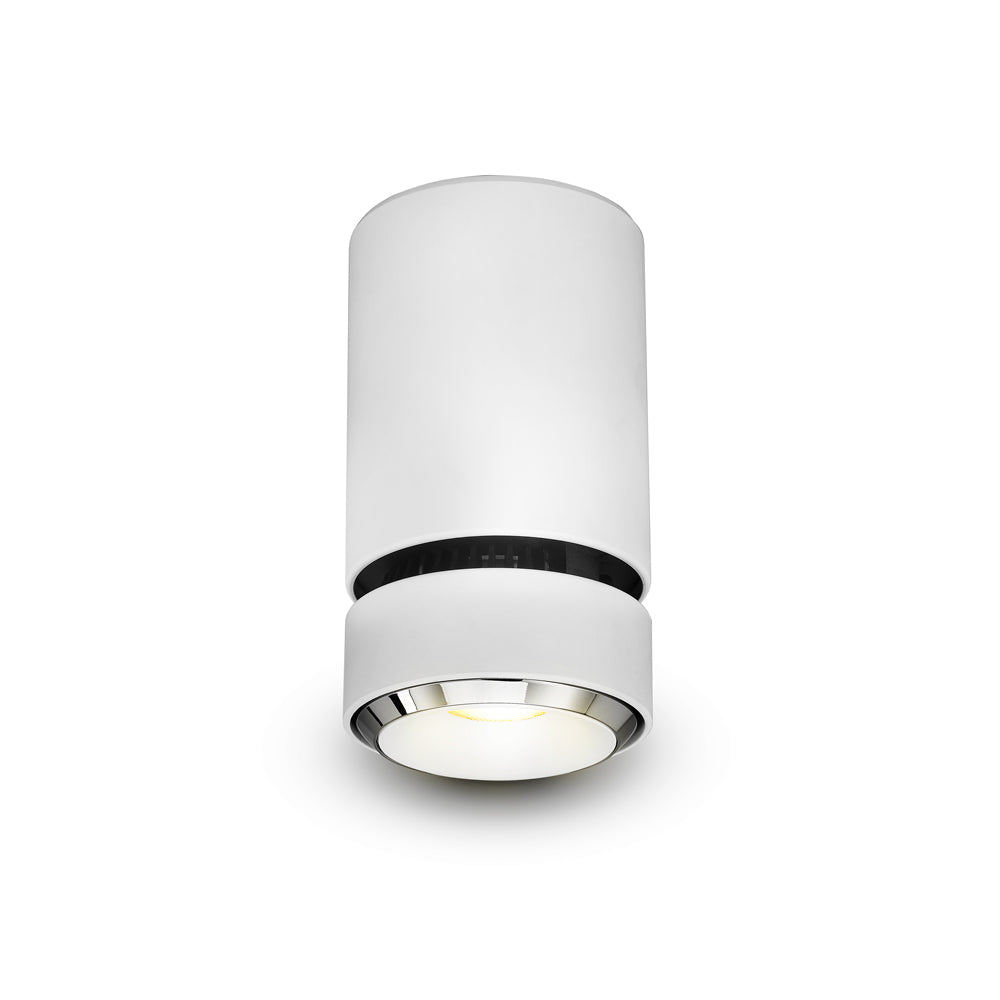

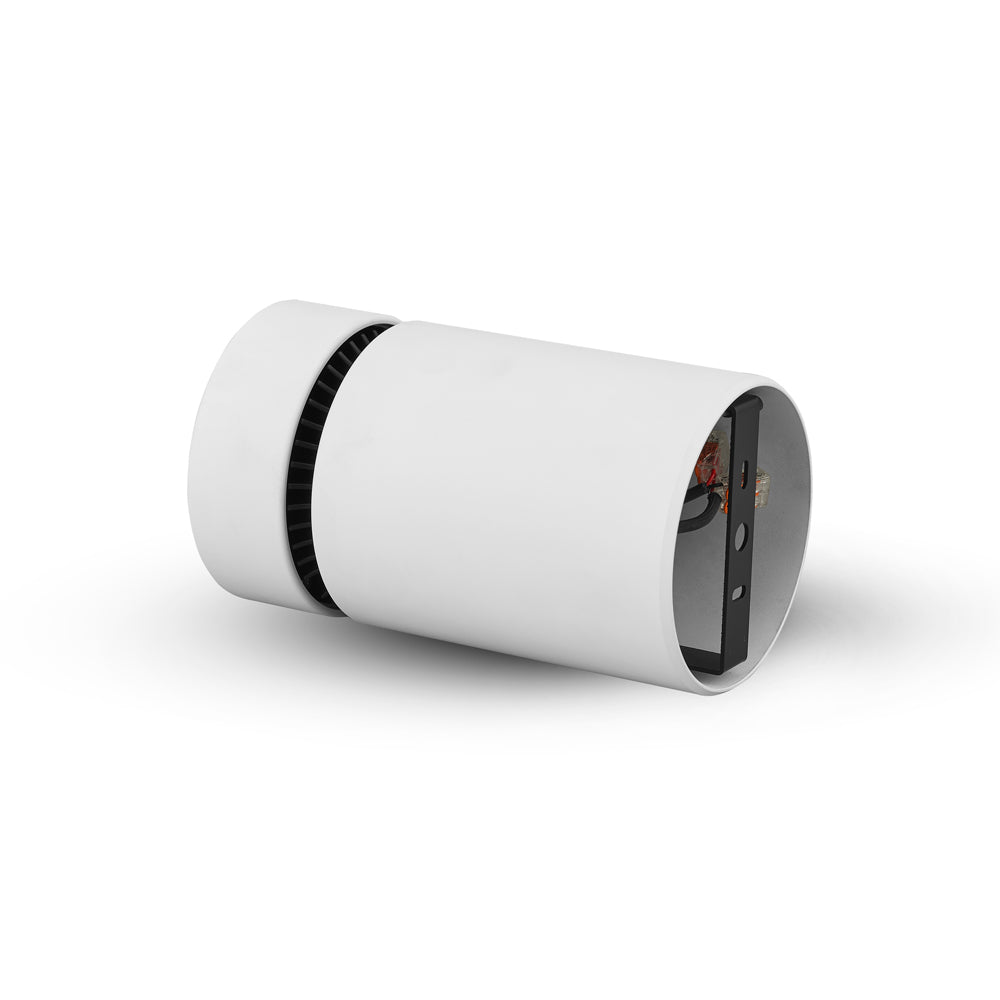

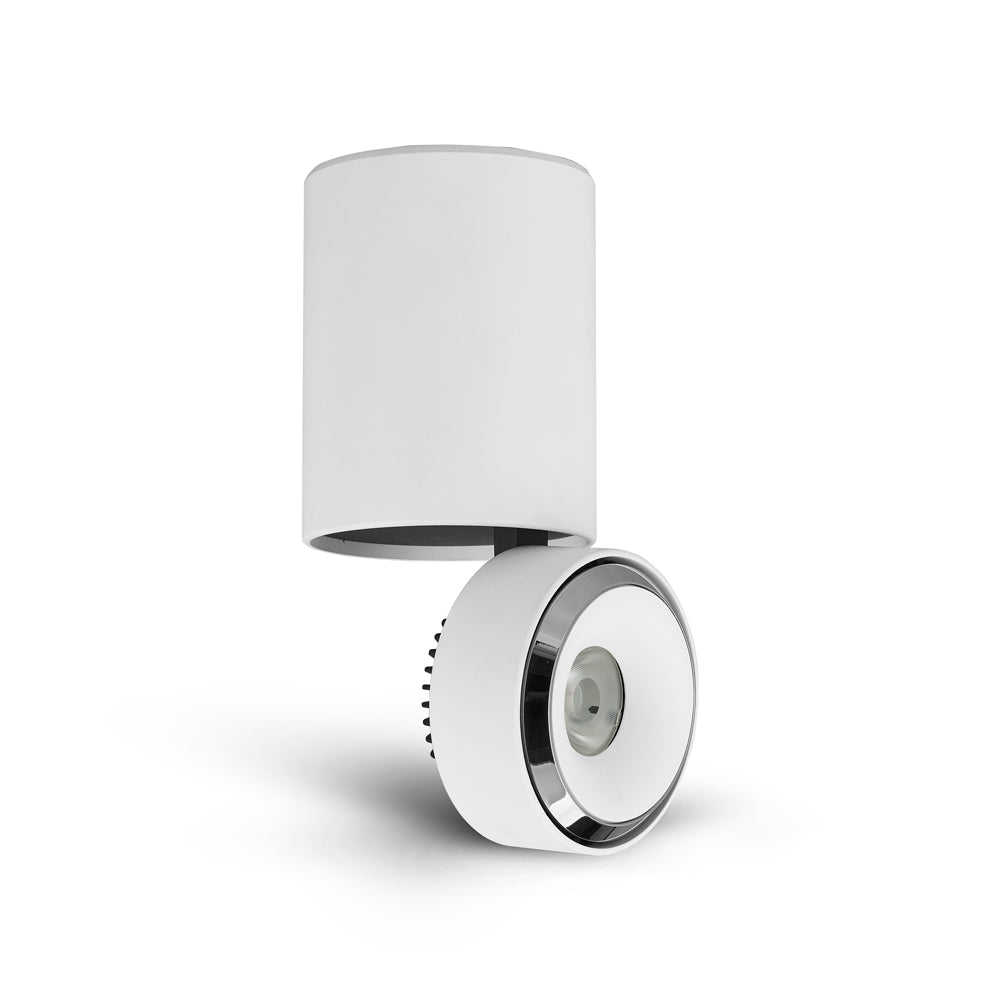

• Orbit 4" White Integrated LED Adjustable Surface Mount Downlight
• Mounting Hardware
• Installation Instructions

Features

• Aluminum body structure available in 2 finishes Black and White
• Integrated LED fixture, surface mounted with remote driver (included)
• IC Rated

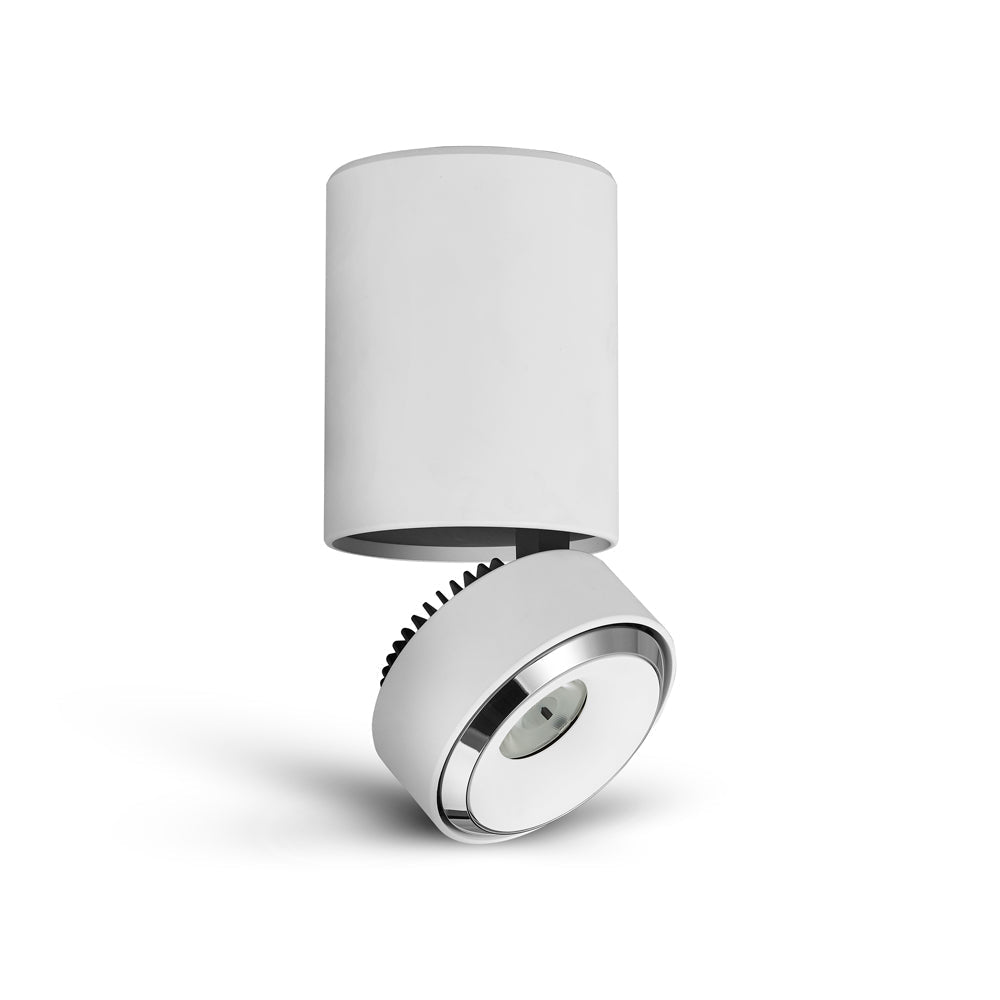

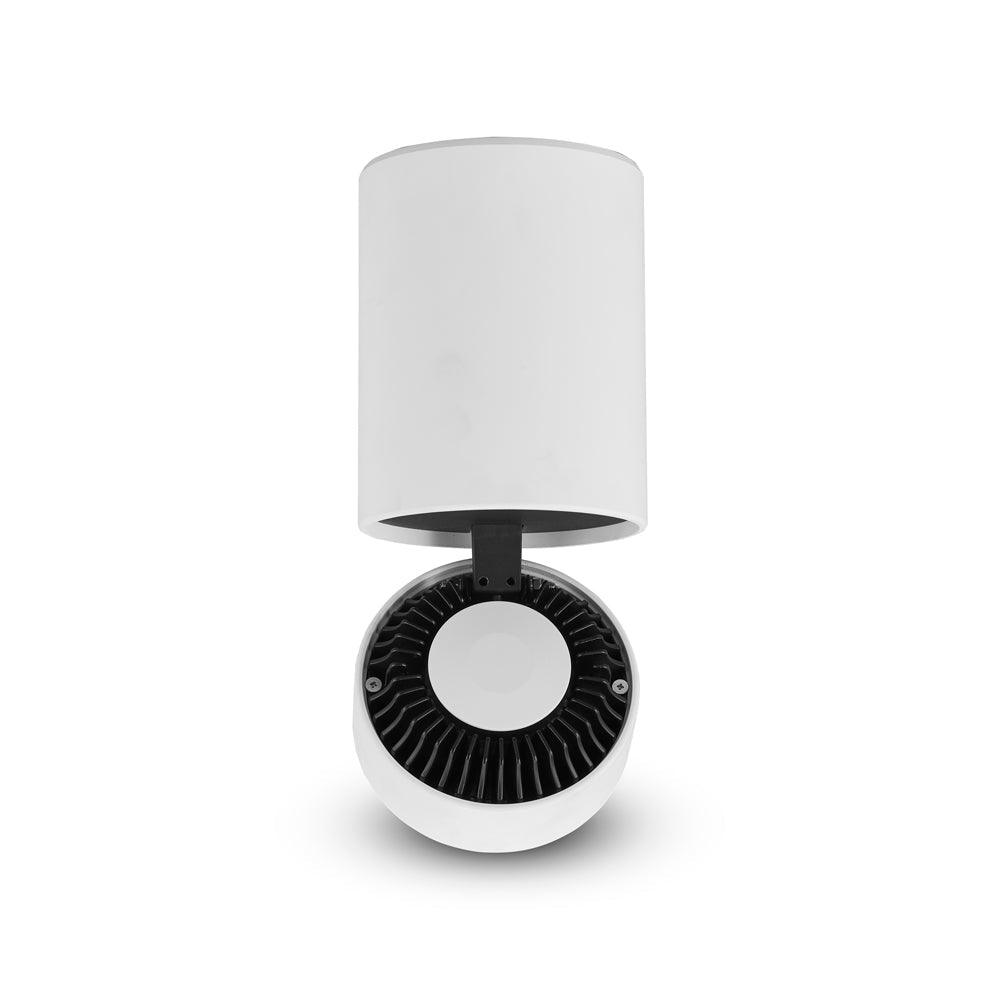

• Adjusts 350° left - right, adjusts 90° up - down
• OVERALL DIMENSIONS: 4.25" Diameter x 7.75"H
• CANOPY DIMENSIONS: 4.25" Diameter x 5.5"H
• LIGHT HEAD DIMENSIONS: 4.25" Diameter x 2.25"H
• HOLE SIZE: 0.59" Diameter

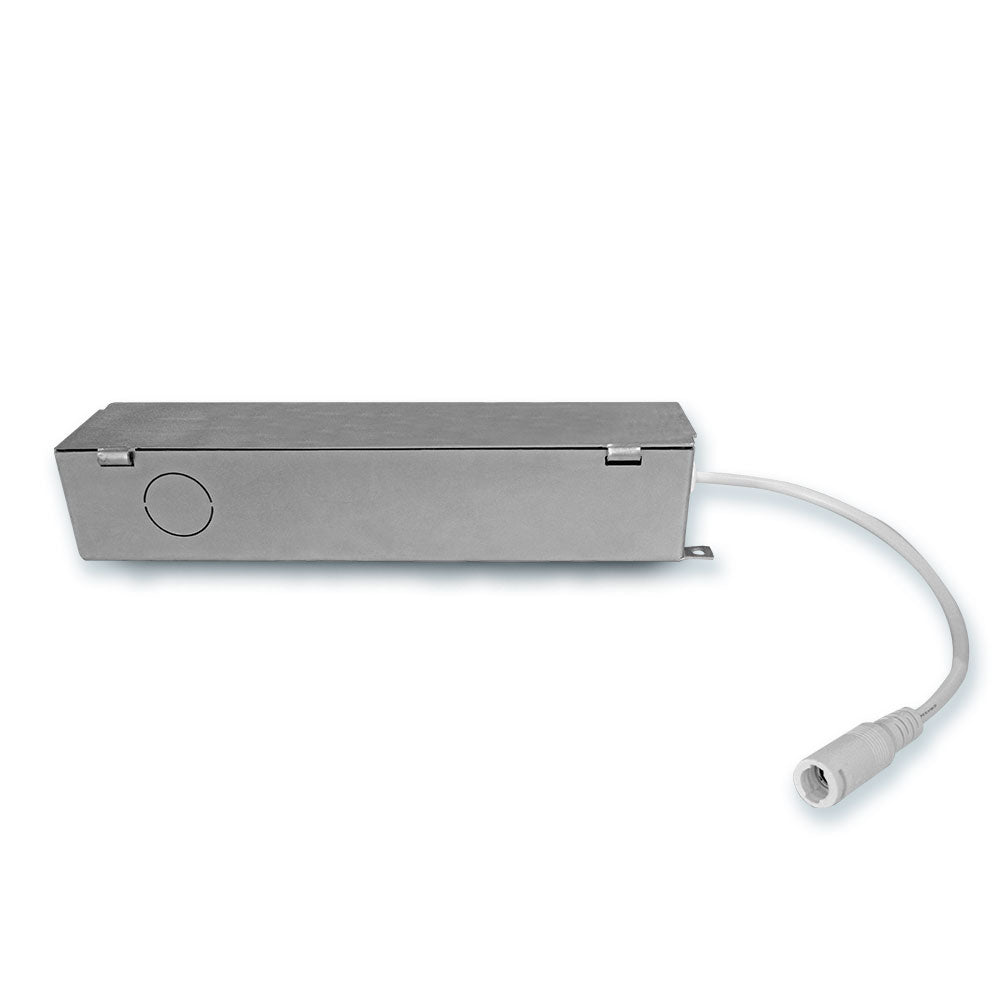

• ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
• LENS BEAM ANGLE: offered in 3 beam angles 12° & 24°(special order required), 36°(stock beam angle)
• STOCK BEAM ANGLE: 36°
• DIMMABLE: Dimming 0-10V
• CCT: 3000 Kelvin color temperature
• BRIGHTNESS: 1877.85 Lumens
• WATTAGE: 20W
• VOLTAGE: 100-277V
• CRI 90: is the highest measurement of light about the accuracy of color appearance
• IP Rate: IP20 (dry rated)
• ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
• 3 Year Limited Warranty

Specifications

Warranty

3 Years Limited Warranty VONN warrants that our products are in new condition, original packaging, free of defects in manufacturing, materials, and quality, when purchased from VONN authorized distributors ONLY. This warranty extends to the original end-user consumer with the original proof of purchase from any of VONN’s authorized distributors. Manufacturer’s 3 Year Limited Warranty shall not extend to any other person, transferee, or commercial use.

Documents & Files

• Installation Guide
• Specification Sheets
• Line Drawing
• IES Photometric File
